2×Mopp Isolation 5V 1A/2A Medical USB Charger 10W AC/DC Power Adapter IEC/En 60601-1 Approved

1 / 5

2×Mopp Isolation 5V 1A/2A Medical USB Charger 10W AC/DC Power Adapter IEC/En 60601-1 Approved

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.APM010A

CertificationTUV, RoHS, ISO9001, CCC, CE, Ukca, UL

ColorBlack or White

TypeOEM

Internal StructureOn-Off Type

Power SourceSingle End Type

ConnectionPlug In

Input100~240VAC, 50/60Hz

Output Voltage5V~24V

Output Current0.3A~2.4A

Rate Power5W~10W

Ripple & Noise100mv~350mv

Voltage Tolerance±5%

Transport PackagePE Bag + Divider + Outer Carton

SpecificationIEC/EN/UL 60601-1, 2×MOPP, Class II

OriginShenzhen

HS Code8504401400

Production Capacity300,000PCS/Months

Product Overview

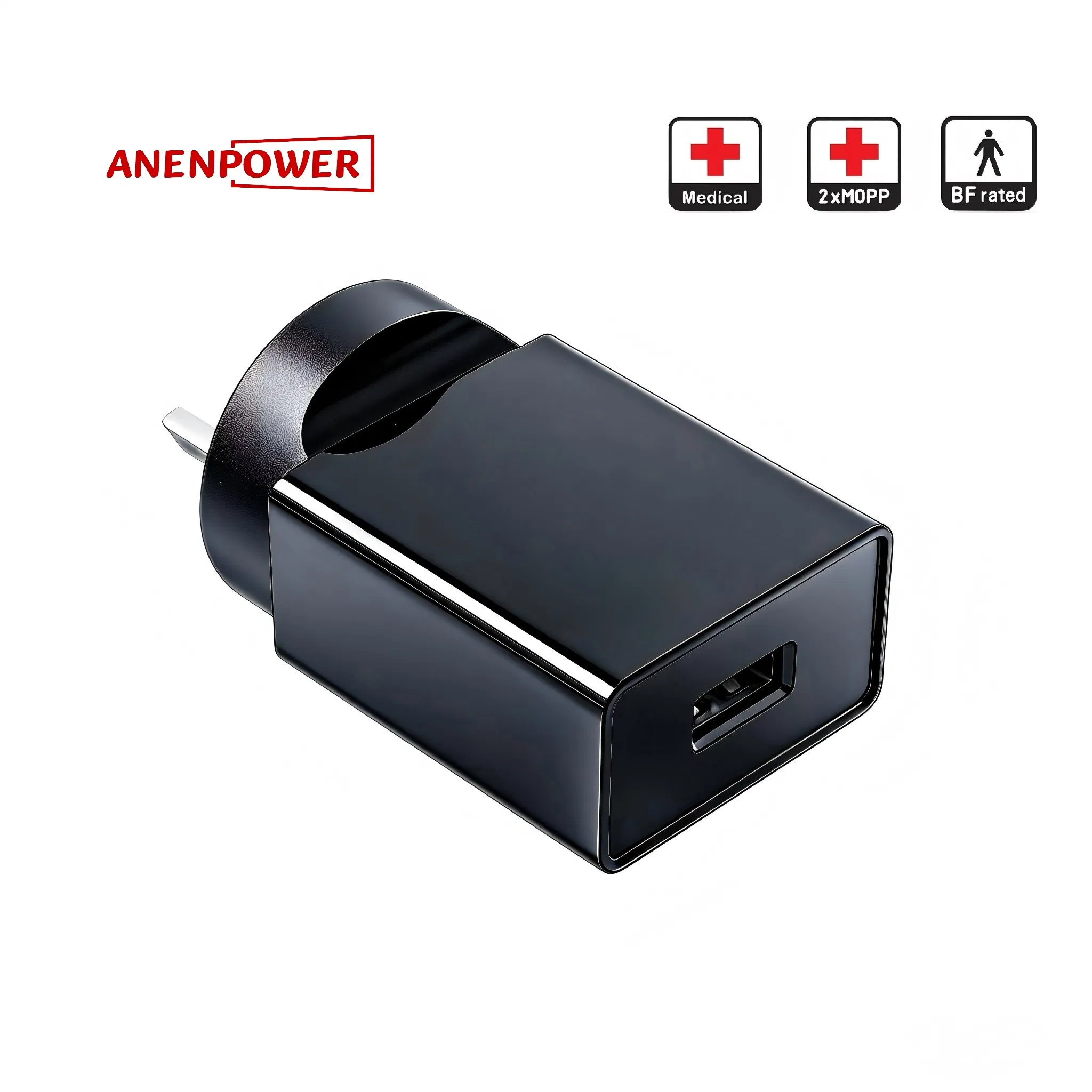

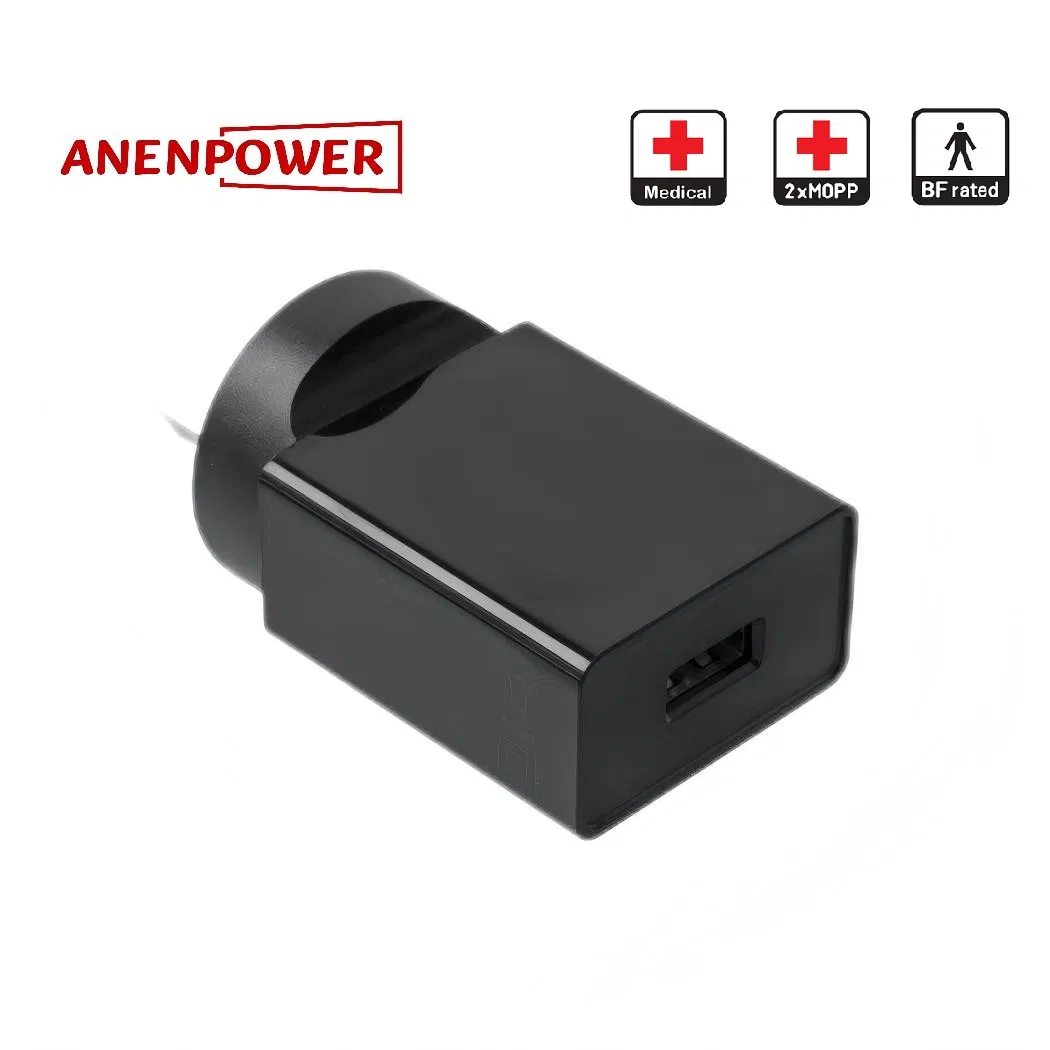

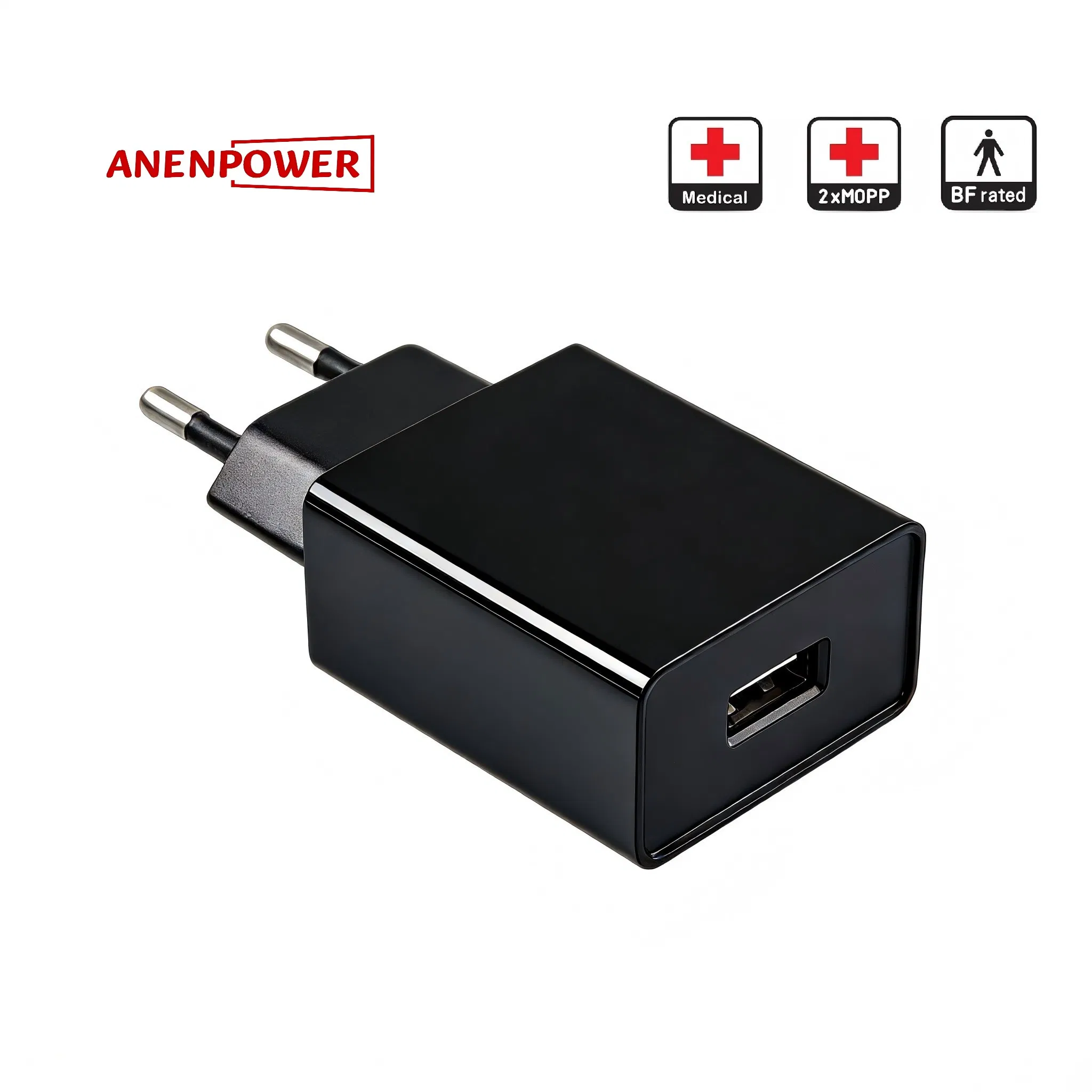

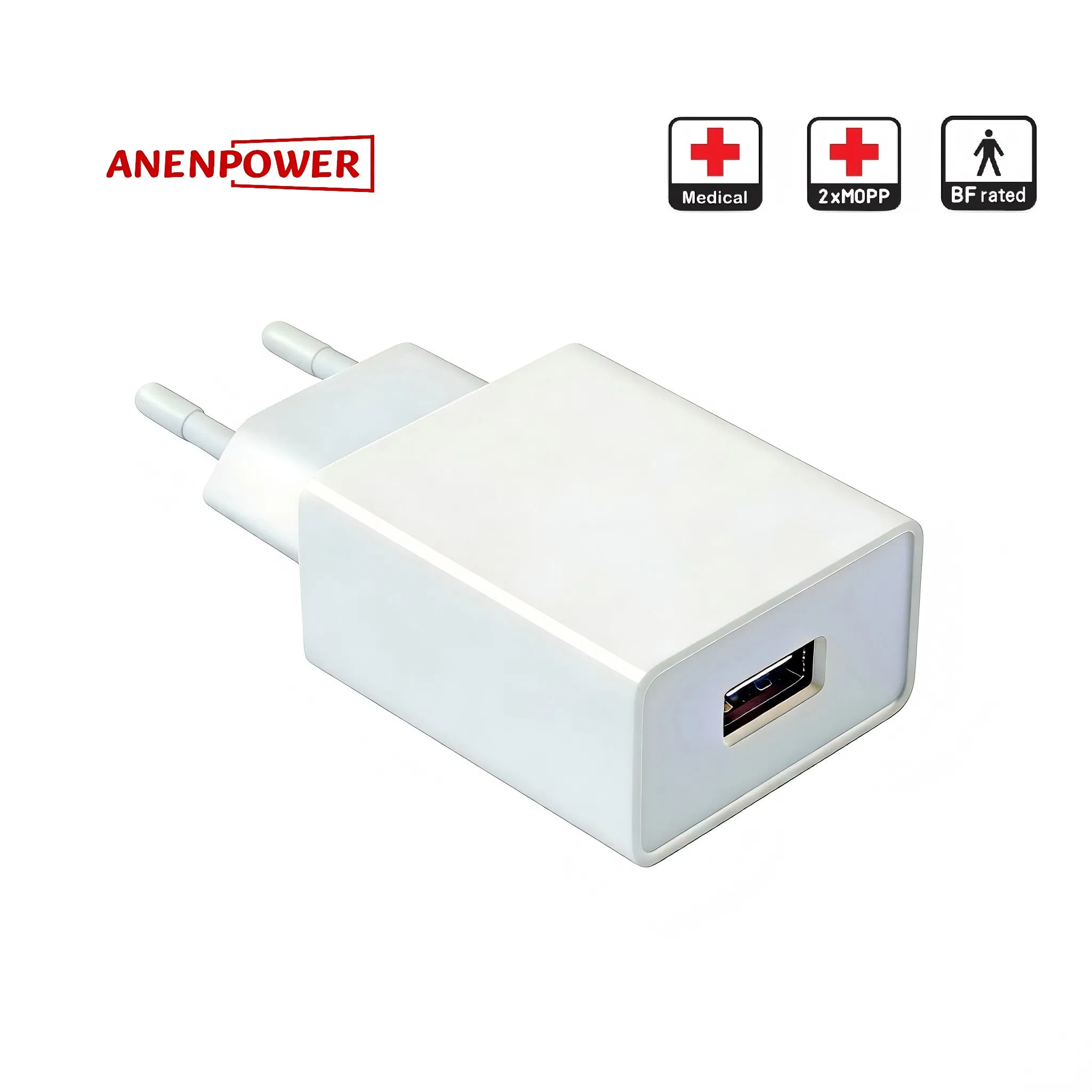

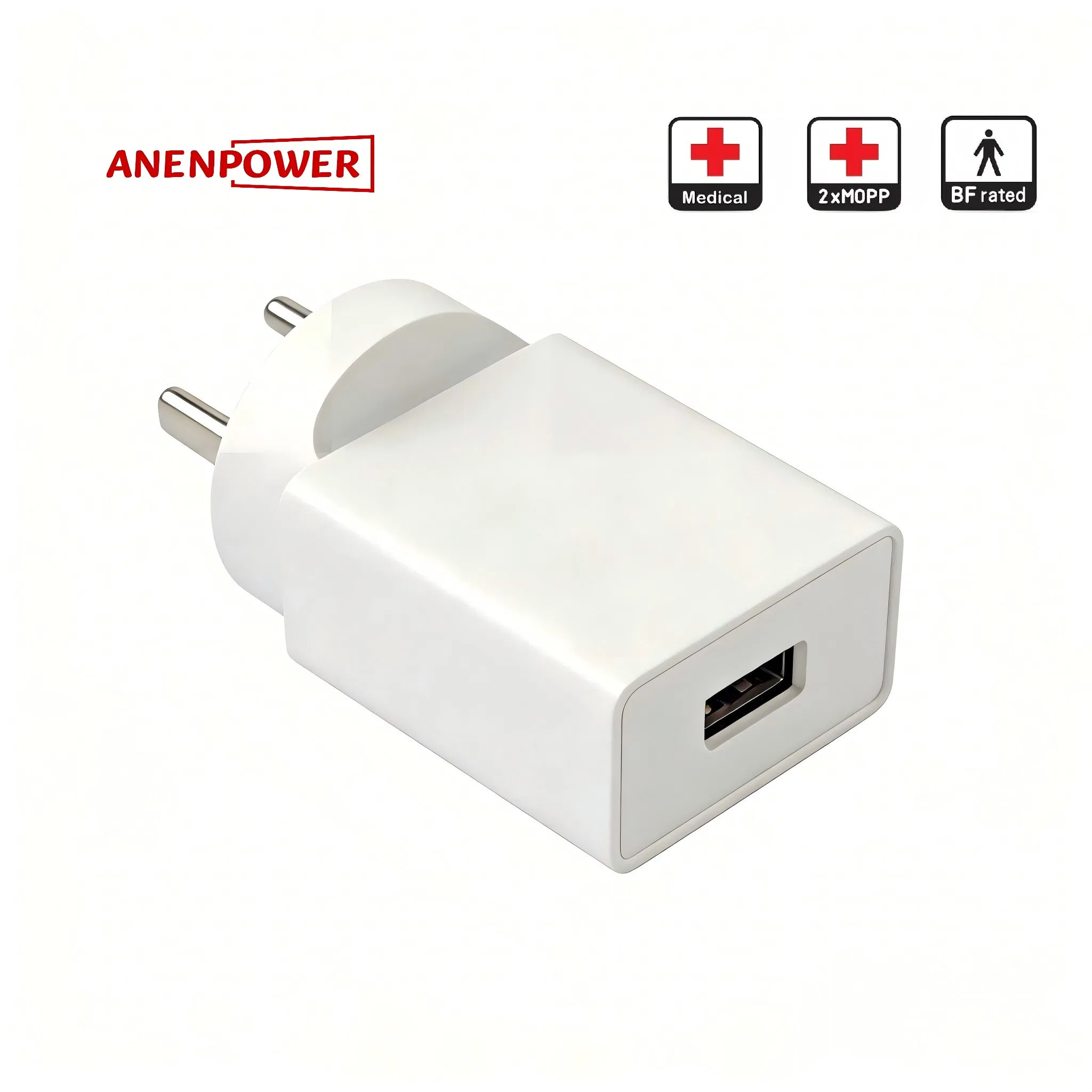

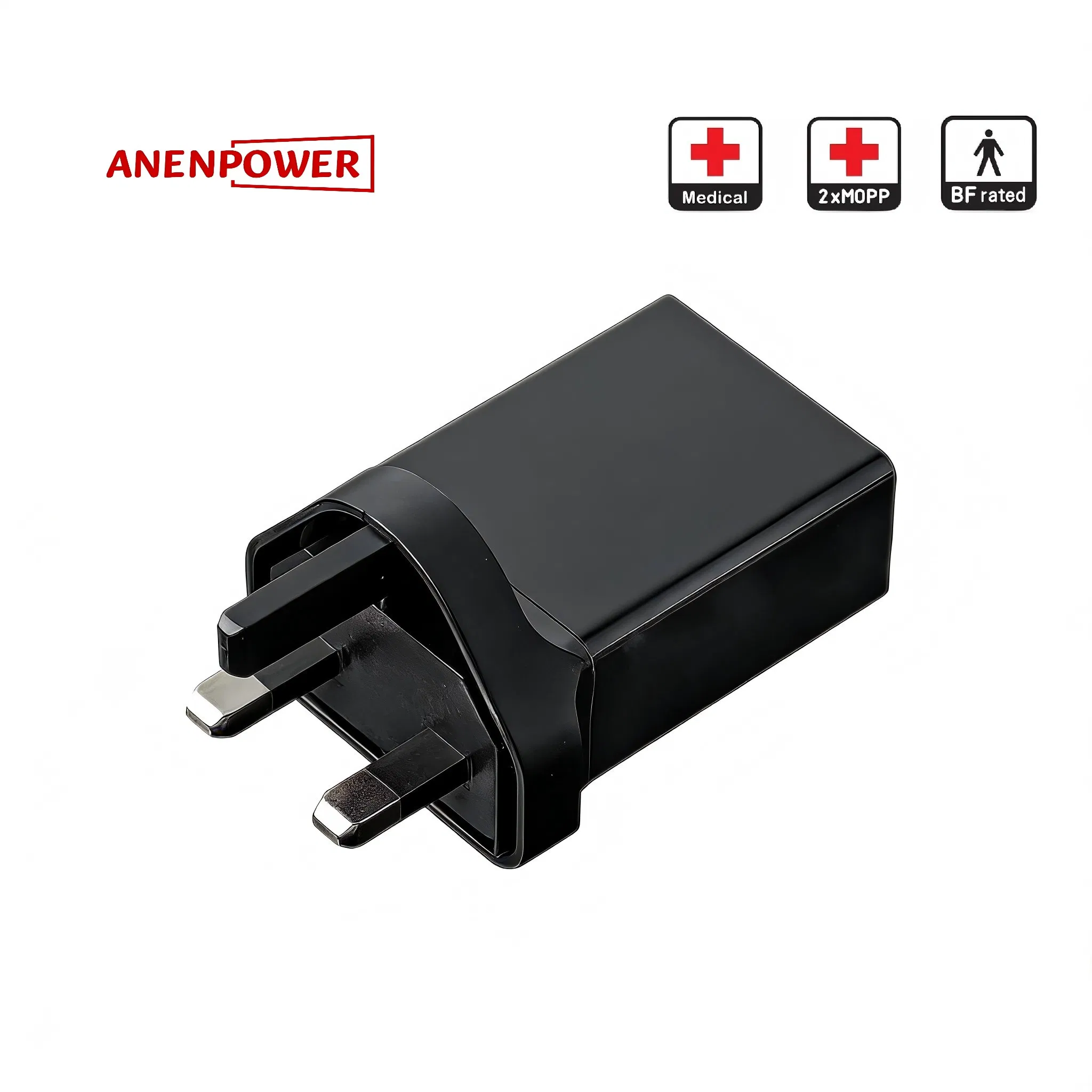

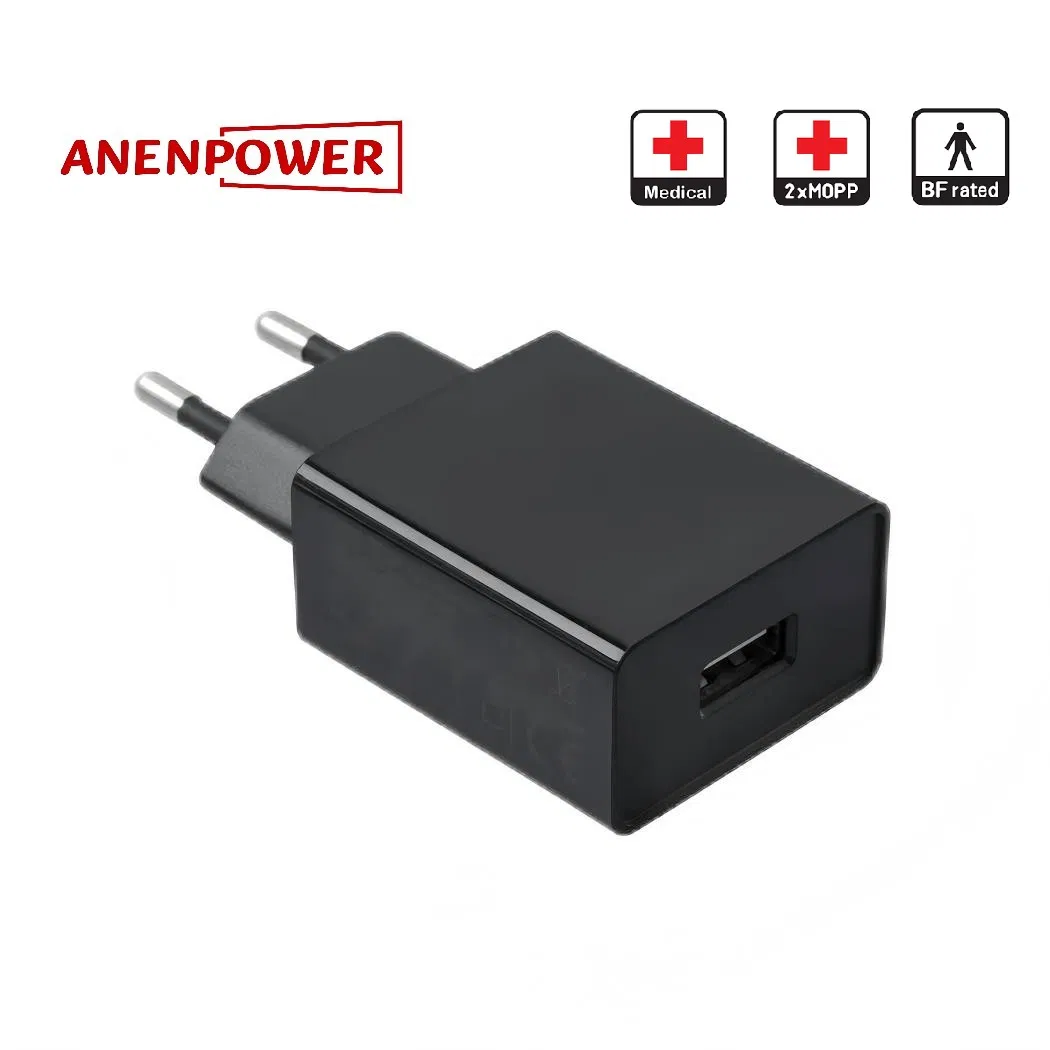

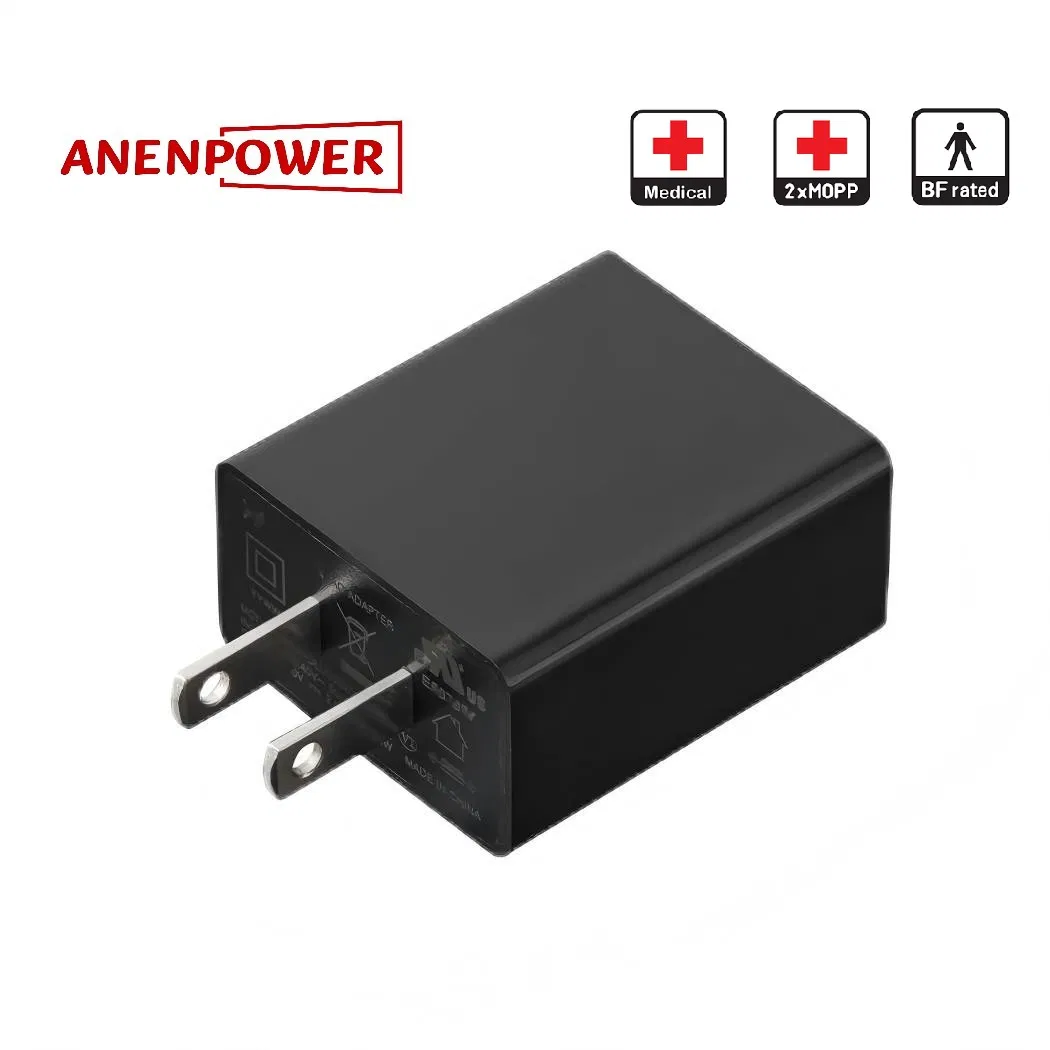

10W Medical Grade USB AC/DC Power Adapter - IEC/EN 60601-1 Certified, 2×MOPP, 5V 1A/2A

This compact 10W medical power adapter is engineered for portable healthcare devices requiring the highest level of electrical safety and isolation. It delivers a stable 5V DC output at either 1A (5W) or 2A (10W) through a standard USB Type-A port, making it an ideal power source for handheld diagnostic tools, patient monitors, and USB-powered medical accessories. The unit is fully certified to IEC/EN 60601-1 (3rd Edition + amendments) with 2×MOPP (Means of Patient Protection), ensuring maximum safety for devices connected to patients, including those with BF (Body Floating) and CF (Cardiac Floating) applied parts.

Engineered for global medical OEMs, this adapter combines ultra-low leakage current, robust EMC performance compliant with IEC 60601-1-2 (4th Edition), and high reliability in a small, fanless form factor. It is the go-to solution for manufacturers targeting regulated markets in Europe (CE), the UK (UKCA), Asia, and other regions adopting IEC standards.

Critical Compliance & Safety Features

IEC/EN 60601-1 Certification: Compliant with international safety standards for medical electrical equipment; Meets IEC/EN 60601-1-2 (4th Edition) for EMC immunity and emissions.
2×MOPP Insulation: Designed for direct patient contact (CF Applied Parts), offering ultra-low patient leakage current (<10µA Normal) and 4,000VAC dielectric strength.
Universal USB Output: Standard USB Type-A female port with tightly regulated 5V DC output (±5% tolerance).
High Efficiency: Compliant with Level VI efficiency standards and EU Ecodesign regulations; No-load power <0.15W.
Comprehensive Protections: Auto-recovery for Short Circuit, Over-Current, Over-Voltage, and Over-Temperature.

Technical Specifications

Input Voltage: 100-240V AC, 50/60Hz (Universal worldwide input).
Max Power: 10W Continuous.
Ripple & Noise: <80mVp-p (Typical) - Low noise design for sensitive sensors.
Operating Temperature: 0°C to +40°C.
Enclosure Material: Flame-retardant PC/ABS (UL 94 V-0 rated).
MTBF: >100,000 hours (at 25°C).

Model NO.	Max Output Power	Output Voltage	Max Load	Min Load	Load Regulation	Line Regulation	Ripple & Noise
APM010AA	5W	5V	1.0A	0A	±5%	±1%	100mV
APM010AB	6W	5V	1.2A	0A	±5%	±1%	100mV
APM010AC	10W	5V	2.0A	0A	±5%	±1%	100mV
APM010AD	9W	9V	1.0A	0A	±5%	±1%	100mV
APM010AE	6W	12V	0.5A	0A	±5%	±1%	100mV
APM010AF	10W	12V	0.83A	0A	±5%	±1%	100mV
APM010AG	9W	15V	0.6A	0A	±5%	±1%	100mV
APM010AH	10W	24V	0.42A	0A	±5%	±1%	100mV

Manufacturing Advantages

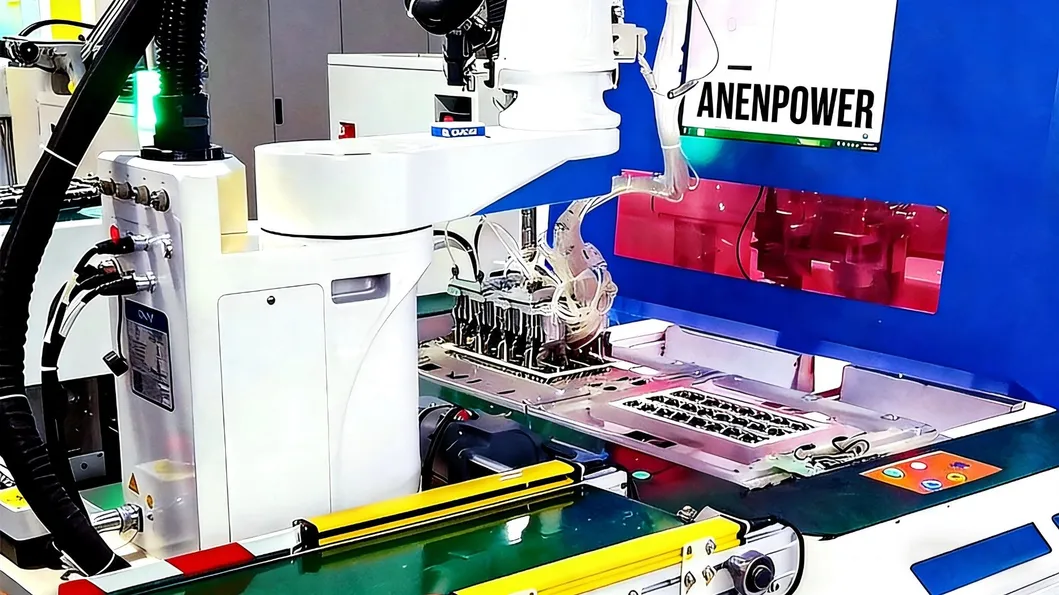

Automated Efficiency: 24/7 fully automated production lines ensure high-volume orders and short delivery cycles.
Premium Quality Control: Robotic assembly eliminates human error, providing stable voltage and ultra-low defect rates.
Reliable Delivery: Flexible capacity adjustment to meet peak-season demands and urgent requirements.
Competitive Pricing: Cost-effective production through 80% reduction in repetitive labor costs.
Global Compliance: Full traceability meeting CE, UL, and international medical standards.

Service & Warranty

24-Month Warranty: Comprehensive coverage for materials and workmanship under normal use.
Technical Support: Free consultation for installation, parameter matching, and troubleshooting.

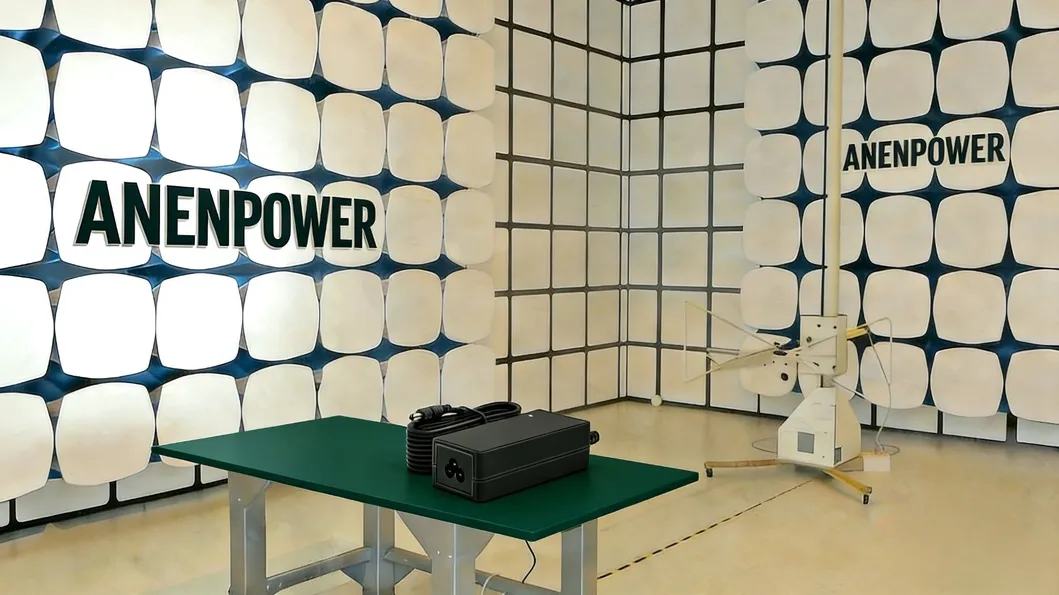

Quality Assurance: Rigorous testing with state-of-the-art equipment to ensure durability.

Frequently Asked Questions

Q1: What does 2×MOPP mean for this medical power adapter?

A: 2×MOPP (Means of Patient Protection) is the highest safety standard in IEC 60601-1. It provides double insulation protection, ensuring the device is safe for direct patient contact, including cardiac applications.

Q2: Can this USB adapter be used globally?

A: Yes, it features a universal input range of 100-240V AC at 50/60Hz, making it compatible with power grids worldwide.

Q3: Is the USB output regulated for sensitive medical tools?

A: Absolutely. It has a tightly regulated 5V DC output with ±5% voltage tolerance and low ripple/noise (<80mVp-p) to prevent interference with sensitive sensors.

Q4: What specific medical certifications does it hold?

A: It is certified to IEC/EN/UL 60601-1 (medical safety) and compliant with IEC 60601-1-2 4th Edition (EMC), alongside global marks like CE, UL, TUV, and UKCA.

Q5: What is the MTBF of this unit?

A: The Mean Time Between Failures (MTBF) is rated at over 100,000 hours at 25°C, ensuring long-term reliability for clinical environments.

Q6: What safety protections are built-in?

A: The adapter includes integrated protection against short circuits, over-current, over-voltage, and over-temperature with an auto-recovery feature.
