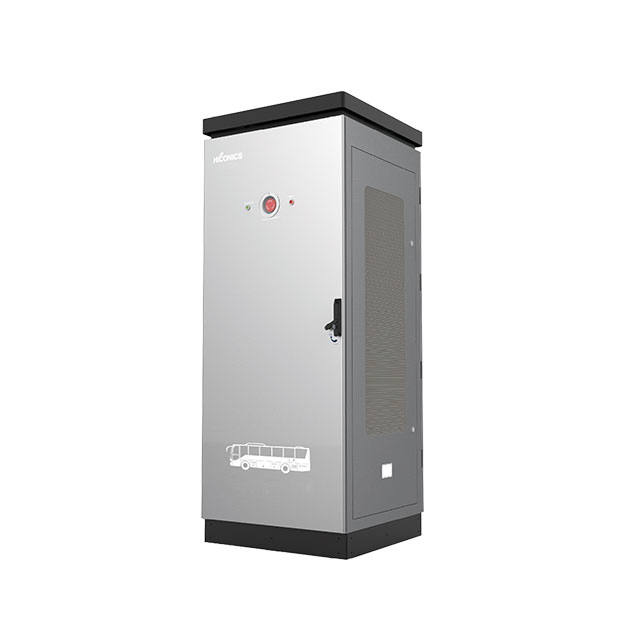

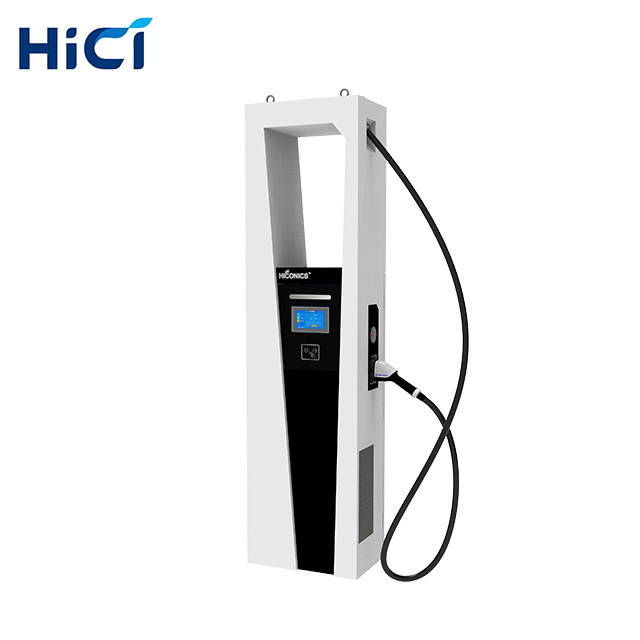

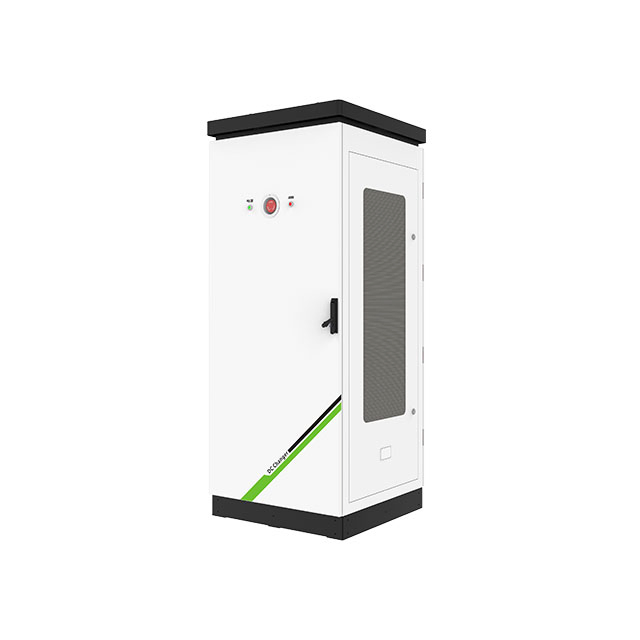

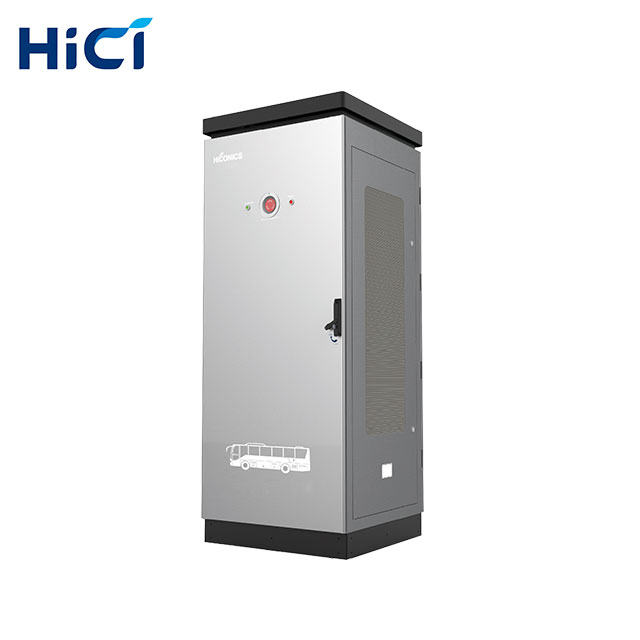

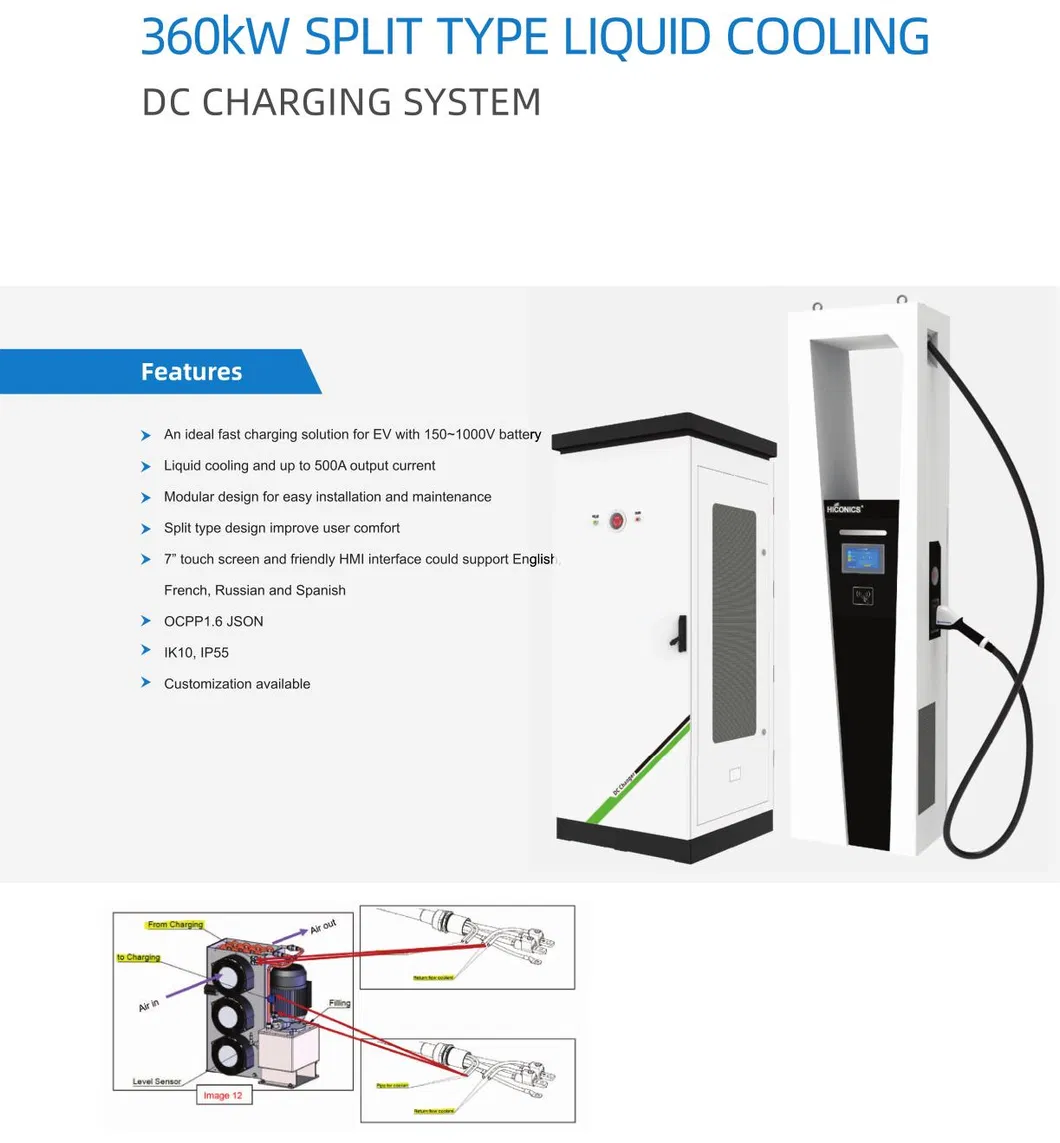

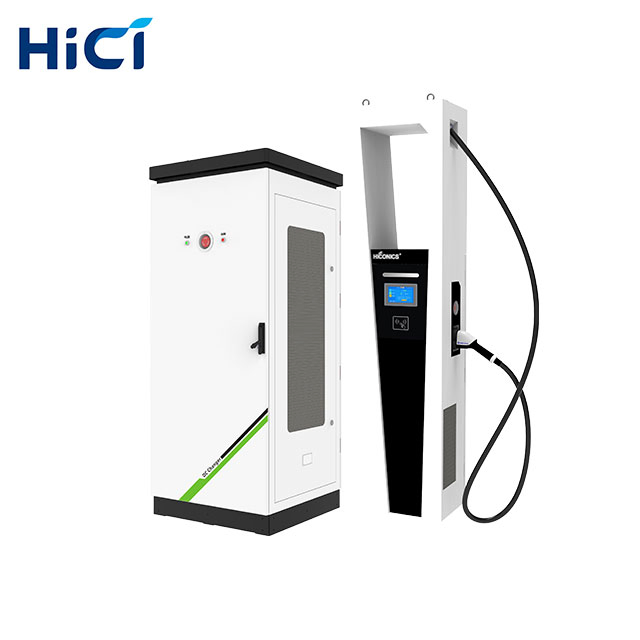

The split type soft charging station is a unique model specially developed for bus stations. It can be customized based on CCS1, CCS2, or GB/T standards. The split structure of the charging module cabinet and charging interface terminals greatly reduces station space and facilitates maintenance.
Adopting outdoor floor-mounted methods with waterproof, dustproof, and anti-corrosion functions, the system achieves a protection class of IP54/IP55. It integrates charging interfaces, HMI, battery charger, communication, and billing system functions into one modular cabinet for convenient installation and simple maintenance.
| Model NO. | European Standard DC EV Charger | Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges | Start Mode | RFID, Mobile Remote, Credit Card |
| Input Rating | 400VAC ± 15% | Max. Input Current | 660A |
| Max. Output Power | 360kW | Output Voltage | 150-1000VDC |
| IP Level | IP54 / IP55 | Max. Output Current | 500A |
| User Authentication | RFID ISO/IEC 14443A/B | Communication | OCPP 1.6 JSON |
| Certification | CE, ISO, TUV | Warranty | 12 Months |

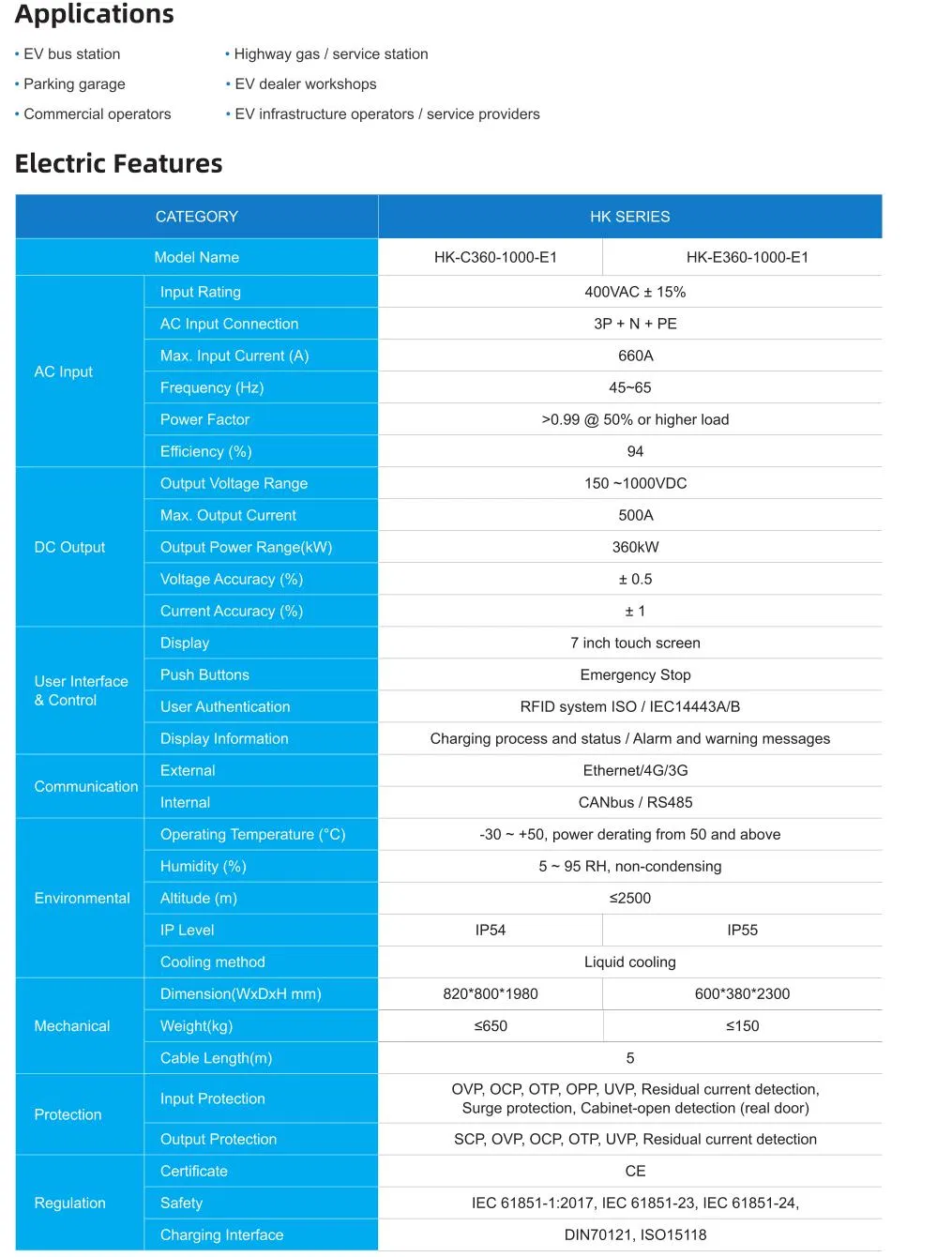

| Category | HK Series Specification | ||
|---|---|---|---|
| AC Input | Input Rating | 400Vac ± 15% | |
| Connection | 3P + N + PE | ||
| Frequency | 45~65 Hz | ||
| Power Factor | >0.99 @ 50% or higher load | ||
| DC Output | Voltage Range | 150 ~1000VDC | |
| Max Current | 500A (CCS2) | ||
| Max Power | 360kW | ||

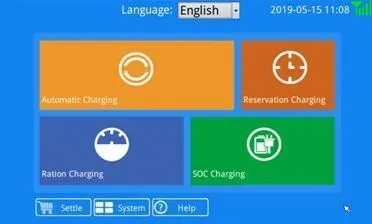

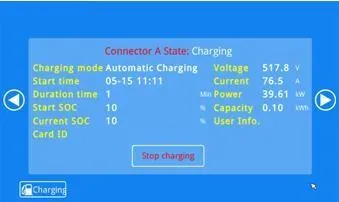

| User Interface | Display | 7 inch touch screen | |
| Authentication | RFID system ISO / IEC14443A/B | ||
| Environmental | Operating Temp | -30 ~ +50°C | |
| Cooling | Liquid cooling | ||
| Protection | Input | OVP, OCP, OTP, OPP, UVP, Surge protection | |
| Output | SCP, OVP, OCP, OTP, UVP | ||
| Package Size | 820.00cm * 800.00cm * 1980.00cm |
| Package Gross Weight | 650.000kg |
| Transport Package | Standard Exporting Package |
| Production Capacity | 300 PCS / Month |
