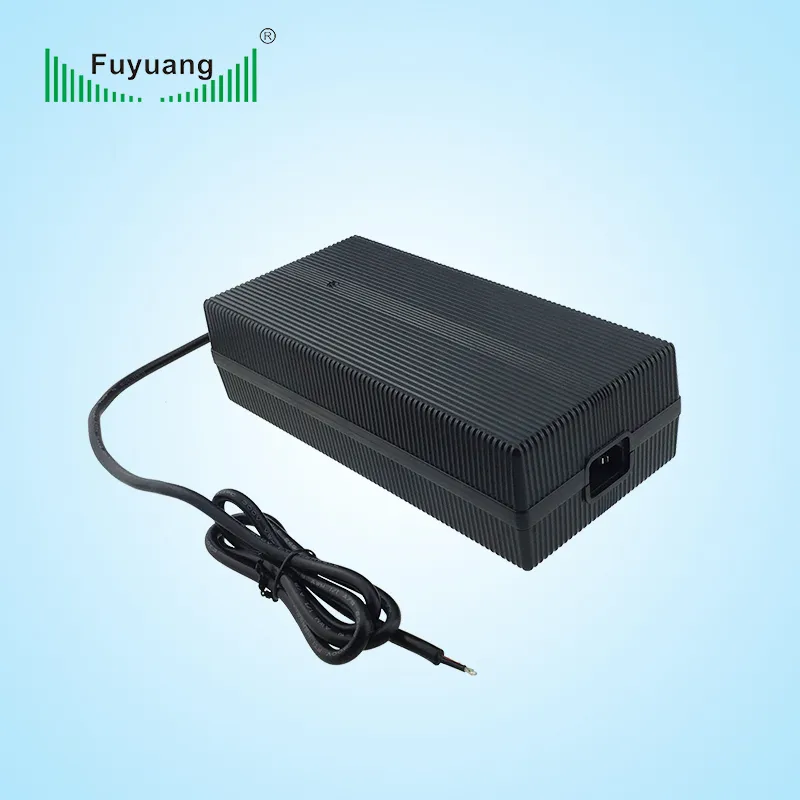

ETL PSE GS SAA Listed Fanless High Power Smart 12V 12.8V LiFePO4 Battery Charger 14.6V 20A 4s LiFePO4 Battery Charger

1 / 5

ETL PSE GS SAA Listed Fanless High Power Smart 12V 12.8V LiFePO4 Battery Charger 14.6V 20A 4s LiFePO4 Battery Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.FY14620000

Driving MethodLED Constant Current

Circuit StructurePWM Controlled

CertificationTUV, CE, RoHS, ISO9001, CCC

Power Supply ModeConstant Current Source

Modulation SystemPWM

Power Supply VoltageAC85-265

Item Name14.6V 20A 4s LiFePO4 Battery Charger

FeatureFanless

ProtectionsShort Circuit, Overload, Overvolt

Warranty3 Years

ApplicationRobot, Scooter etc.

Weight1.8kgs

Efficiency>95%

Leadtime2-3 weeks

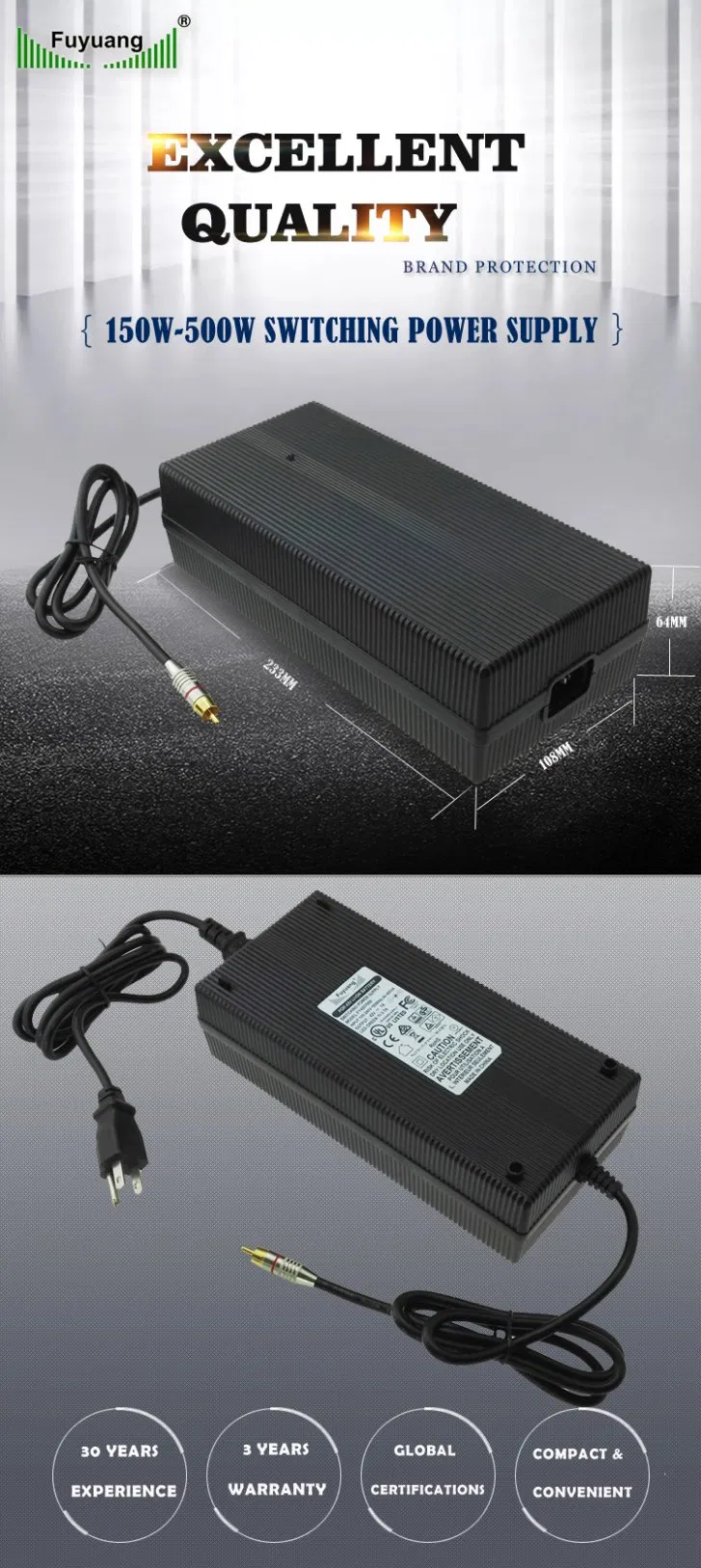

Dimension233*108*64mm

HS Code8501310000

Capacity500,000 PCS Per Month

★

Product Description

ETL PSE GS SAA Listed Fanless High Power Smart 12V 12.8V LiFePO4 Battery Charger 14.6V 20A

Key Advantages:

Global certificates: CE, GS, CB, UL, CUL, FCC, PSE, SAA, RCM, KC, CCC, ROHS, REACH.
100% burn-in tested and inspected with automatic test equipment (ATE).
Full safety inspection: no load voltage, load voltage, short circuit, OCP, OVP, Ripple Voltage, Primary, HIPOT test.
Comprehensive safety standards compliance (UL60950, EN60335, EN61558, etc.).
Three-year quality guarantee.
Self-manufactured key components (Transformer, case, and DC cord).
Expert engineering with over 25 years of experience.
OEM and ODM services available.

450W Series Output Matrix

Parameter	12.6V	14.6V	16.8V	21V/21.9V	25.2V	29V	36V	42V	50.4V	58V
Current	15-20A	15-20A	15-20A	15-18A	12-16A	10-13A	8-11A	7-9.5A	5-7.5A	5-7A
Max Power	252W	292W	336W	400W	400W	380W	396W	400W	385W	406W

AC Input	100-240V, 50/60HZ, 5AMax, 500VA
AC Inlet	IEC320-C14
DC Plug Options	Anderson, 5.5*2.1, XLR, Canon, XT60, etc. (Customizable)
Housing Dimension	23310864MM (PC Material)
Safety Standards	UL60950, UL1012, UL1310, IEC61347, IEC60335, EN62233
Operating Temp	-29ºC ~ +45.5ºC
MTBF	30,000 hours at 25ºC

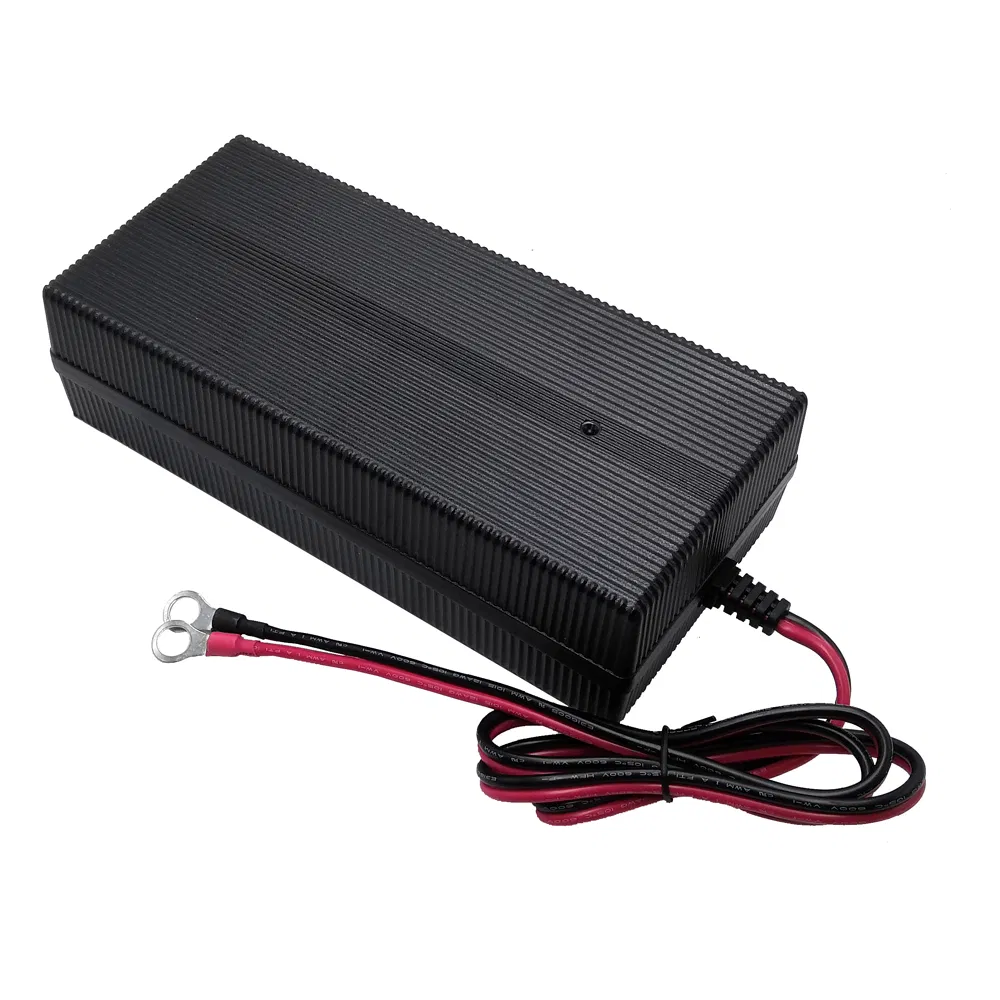

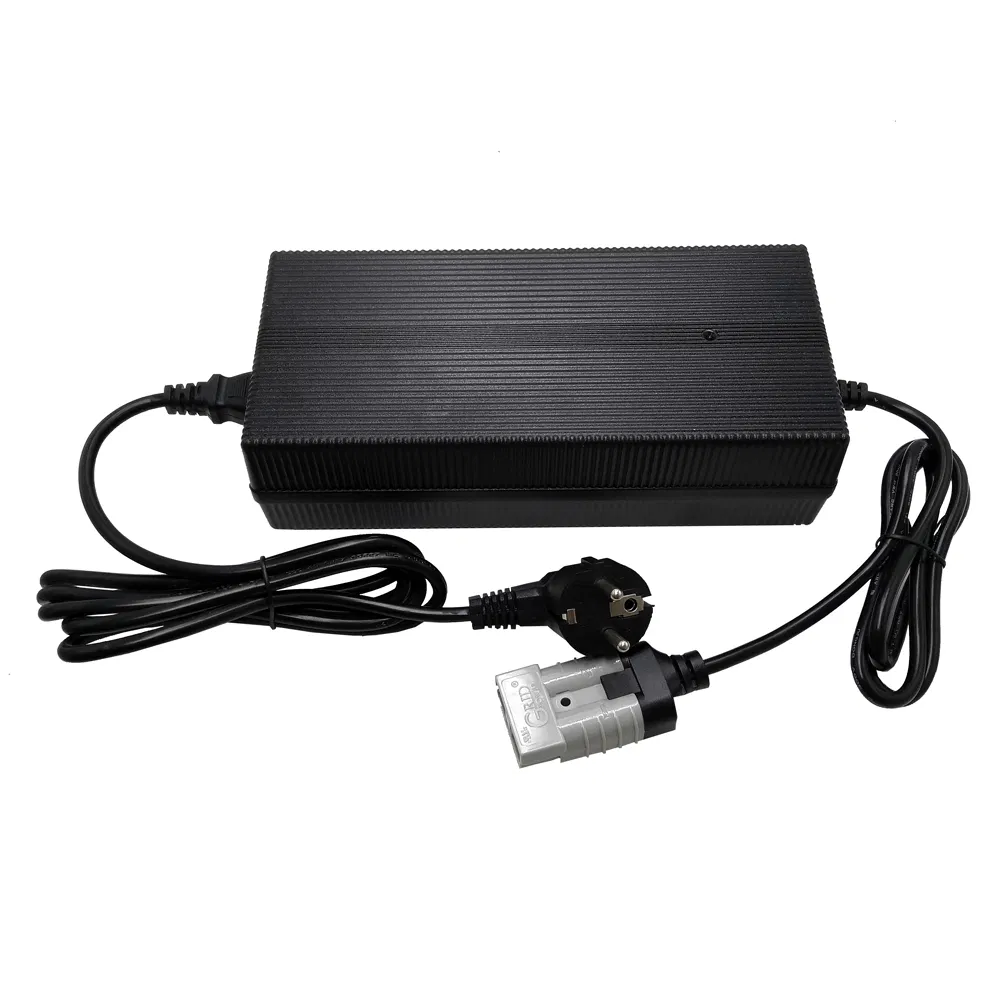

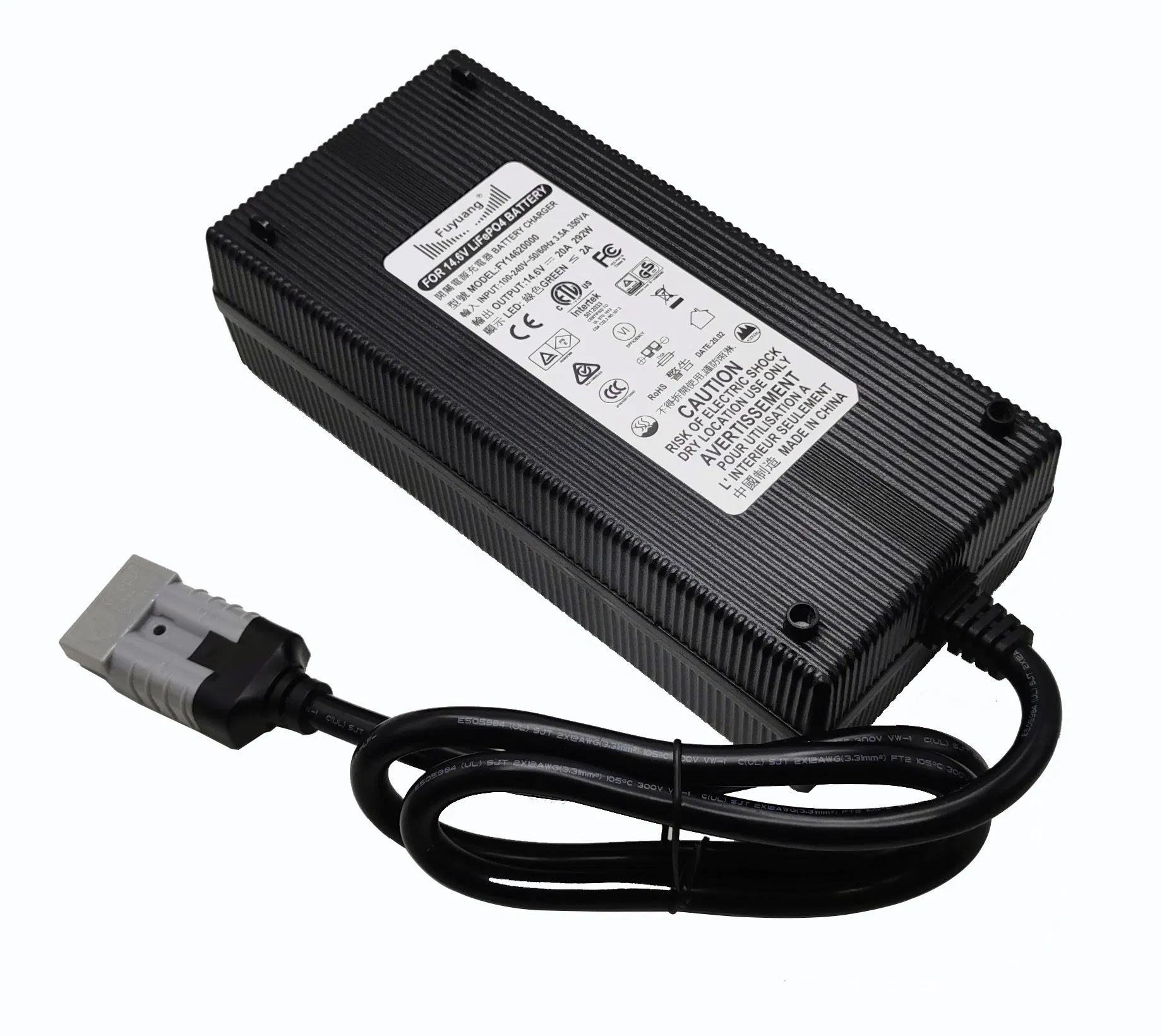

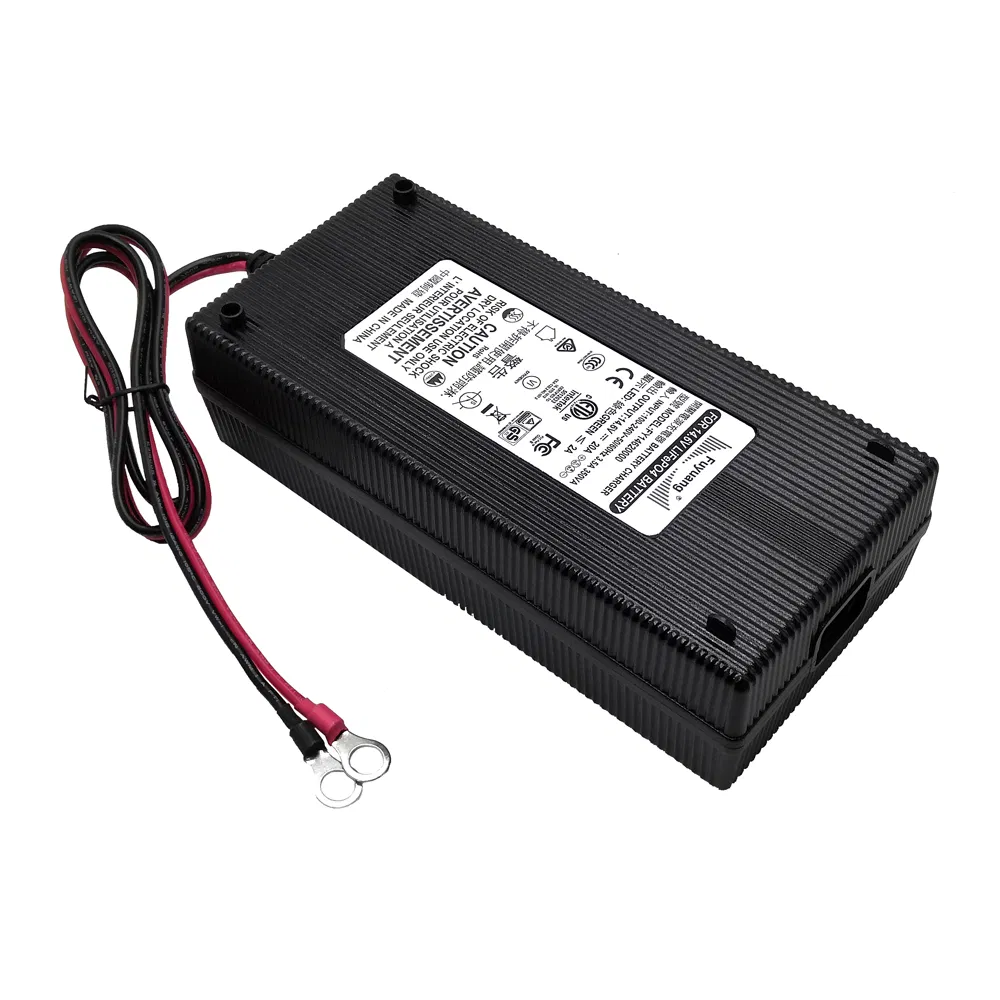

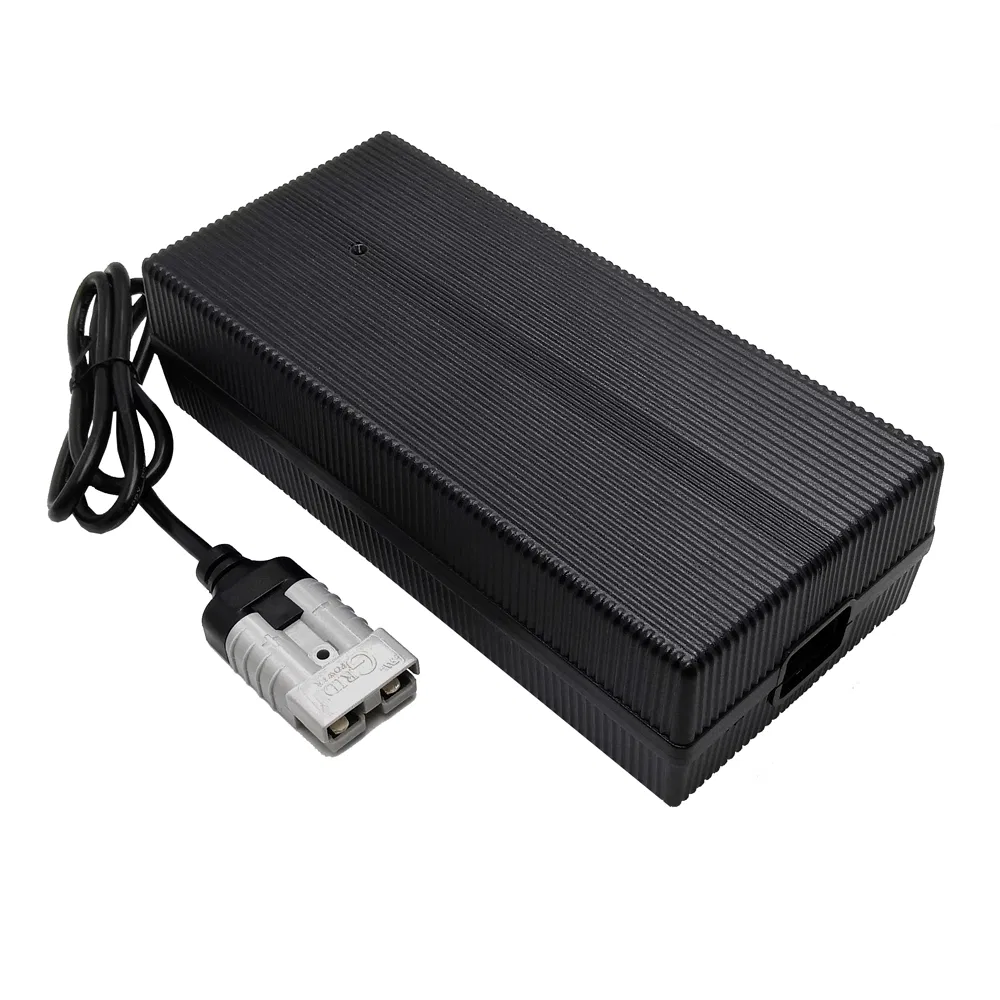

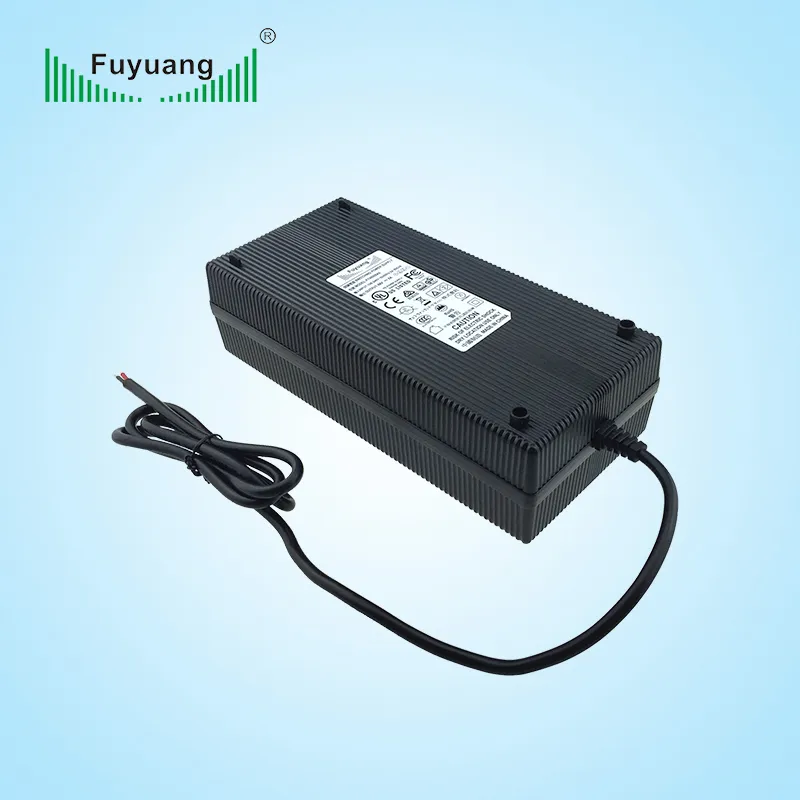

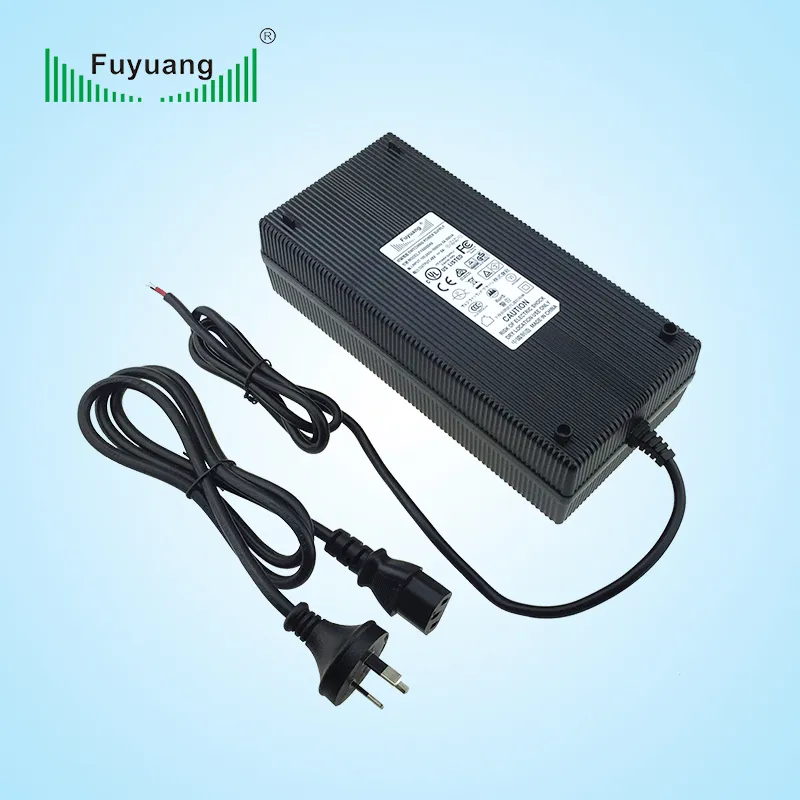

Product Gallery

Certification File References

UL: E304160 / E343215
TUV/GS: S1 50224721
SAA: ESO110651 / SAA131909EA
PSE: JD50195547 / JD50248227
KC: HU10419-9002A
CE: E0604412-01
CCC: 2014010907681379
CB: JPTUV-042130

Frequently Asked Questions

Q: What is the warranty period for this battery charger? A: We offer a comprehensive 3-year guarantee on all our chargers.

Q: Is the 14.6V 20A charger equipped with a cooling fan? A: No, this is a fanless high-power smart charger, making it silent and durable for various environments.

Q: What safety protections are built into the device? A: The charger includes Short Circuit, Over Current, Over Voltage, and Reverse Polarity protection.

Q: Can this charger be used internationally? A: Yes, it supports a wide AC input range of 100-240V (compatible with AC85-265V) and holds global certifications like UL, CE, GS, and SAA.

Q: What are the typical applications for this charger? A: It is ideal for high-power demands such as Robots, Electric Scooters, and other devices powered by 4s LiFePO4 batteries.

Q: Is the DC connector customizable? A: Yes, we provide various DC plugs including Anderson, XLR, XT60, and more, customized according to your specific requirements.
