30kw DC EV Fast Charger Gbt Portable Charging Station for Electrical Car

1 / 5

30kw DC EV Fast Charger Gbt Portable Charging Station for Electrical Car

Customization:	Available
Charge Method:	Quick Charge
Installation:	Mobile

Send Inquiry

Product Description

📋

Basic Specifications

Model	30KW Fast EV Charging Station
Input Rating	380VAC±15%
Frequency	50 / 60 Hz
Charging Interface	One Pile with Multiple Charges (CCS1, CCS2, GBT, Chademo)
Output Voltage Range	200-750Vdc
Max. Output Current	100A
Efficiency	≥95%
Protection Level	IP44 / IP54
Certification	CCC, CE, ISO, TUV, RoHS
Warranty	24 Months

⚡

Product Description

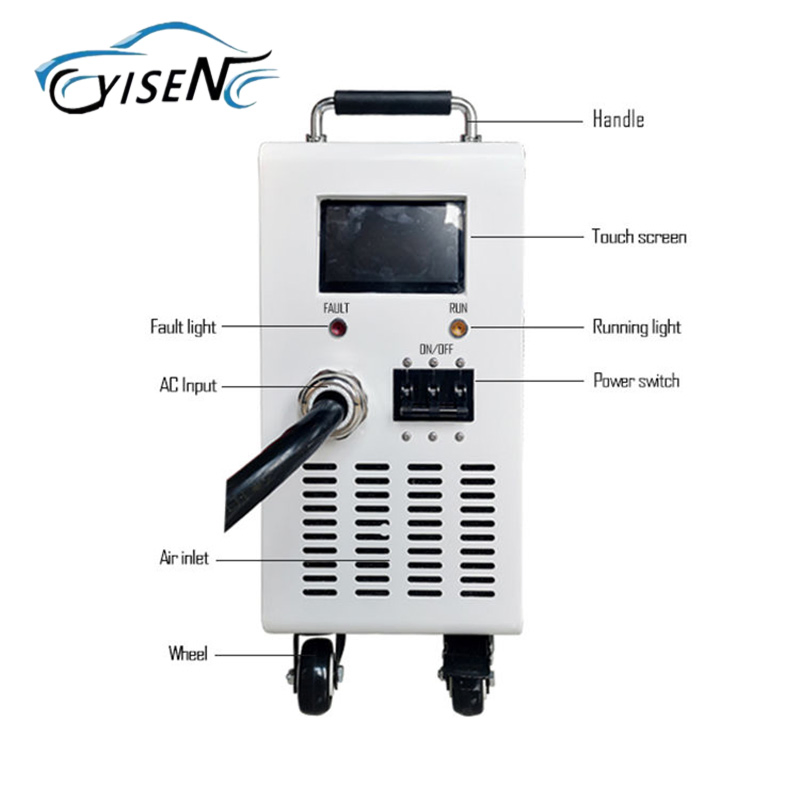

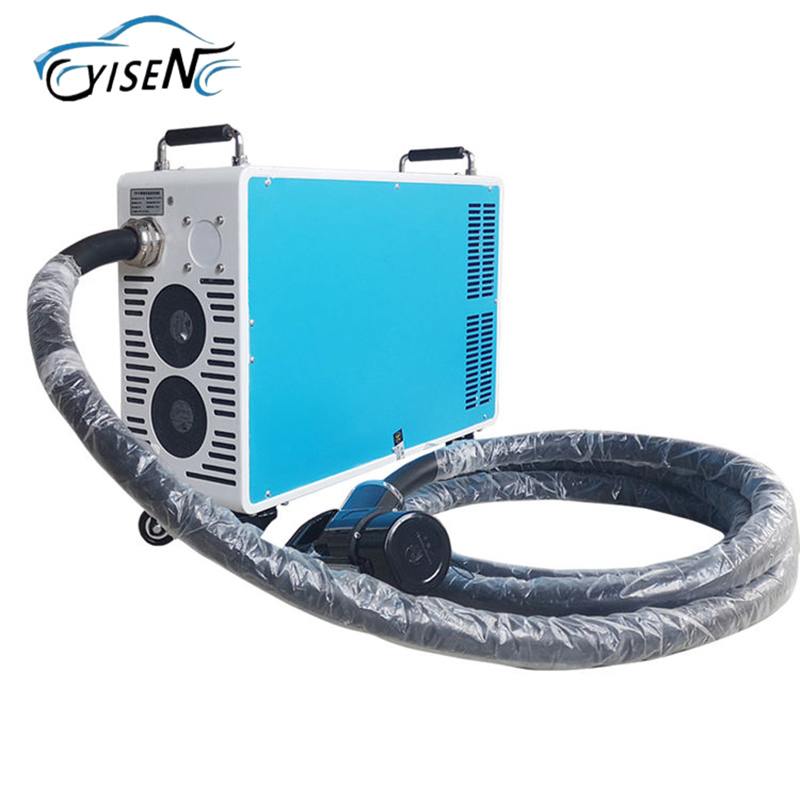

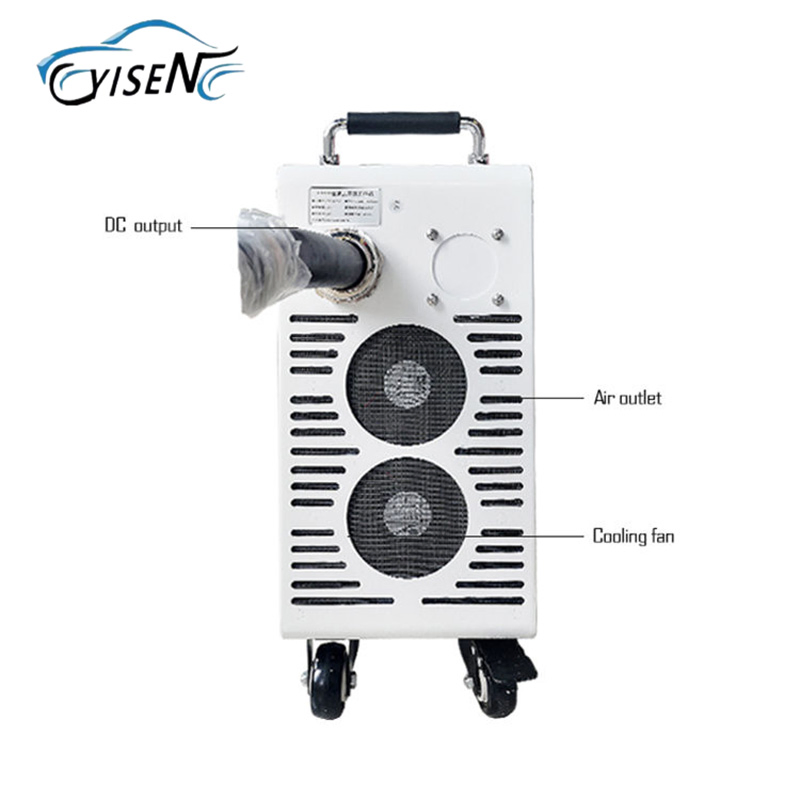

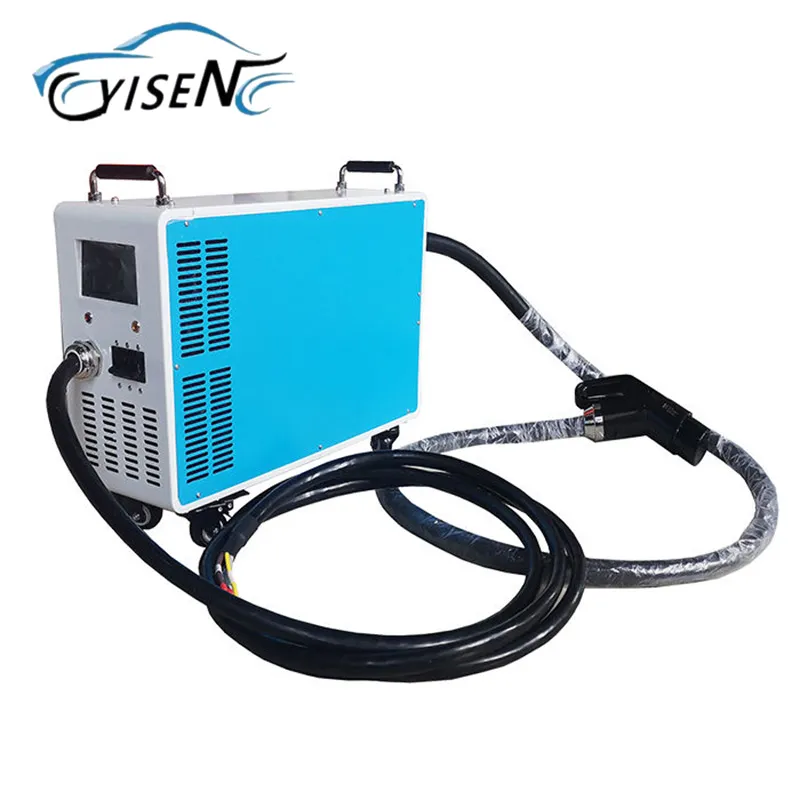

The 30KW portable charger features a high-performance charging module with a super wide charging range and high efficiency. Equipped with a 4.3-inch display screen, it provides intuitive operation prompts, making it simple and user-friendly. The unit is designed with voice navigation and an anti-collision grade of IK8 to withstand external impacts.

Key Features

Small size and light weight for portability.

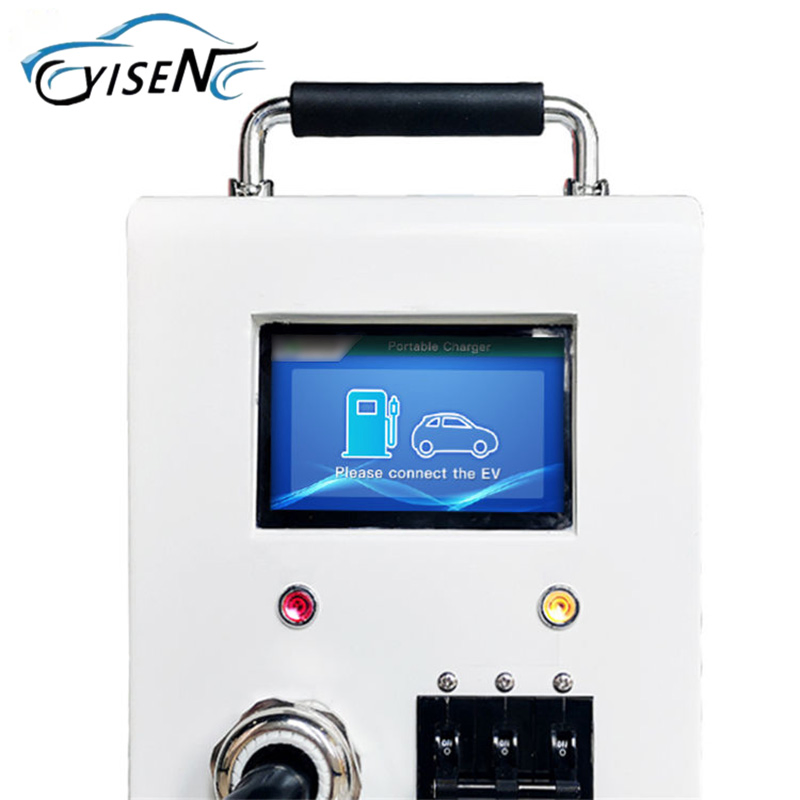

4.3-inch touchscreen display for real-time monitoring.
RFID card start method for secure access.
Supports remote charging monitoring via mobile phones.
IK8 anti-collision grade and IP54 protection.

Usage Scenarios

This charger is ideal for mounting in garages, businesses, racing tracks, or RV parks. It serves as an excellent backup charger for SUVs, trailers, or any location requiring rapid DC power sources.

⚙️

Technical Parameters

AC Input	Connection: 3P + N + PE, Wye connection
	Max Current: 60A
	Power Factor: >0.99 @full load
	Efficiency: 95%
Environmental	Operating Temp: -40~85ºC
	Humidity: 5%-90% RH, non-condensing
	Altitude: 2000m

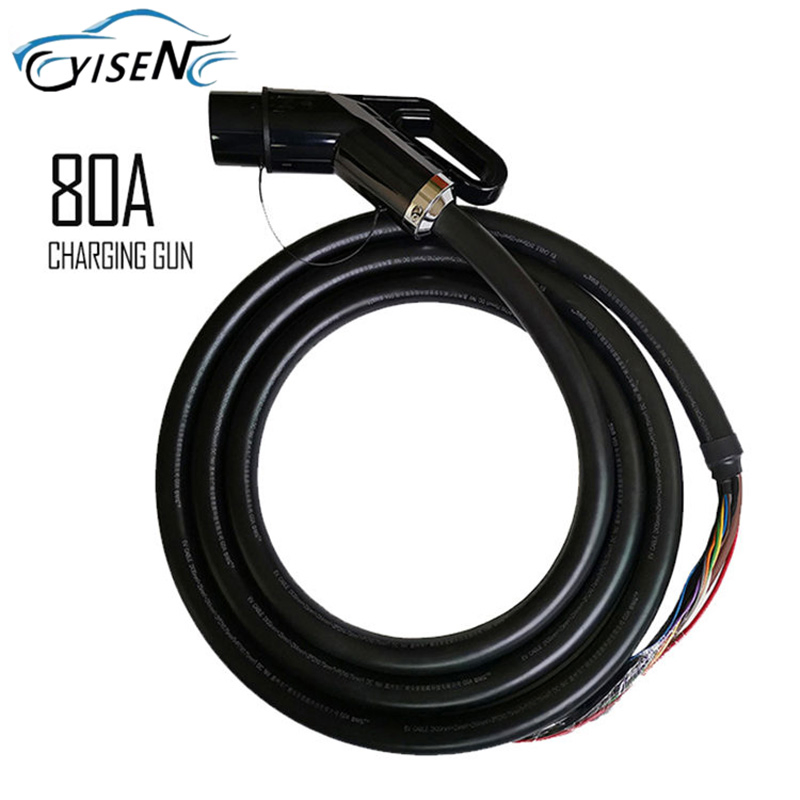

Mechanical	Cable Length: 5M (Customizable)
Mechanical	Dimensions: 640×390×230mm

❓

Frequently Asked Questions

How to place an order?

Contact customer service to determine freight and product details. We will provide a proforma invoice. A 30% deposit is required to start production (approx. 10 days). Balance is paid before delivery.

What is the warranty policy?

We offer technical support via phone or email for the lifetime of the product. We provide prompt solutions and efficient spare parts support at competitive prices.

What is the typical delivery time?

The delivery time is usually within 35 workdays after we have received your prepayment.

Do you provide customized services?

Yes, we offer customized services based on your performance requirements, including special technical specifications.

What are the available payment methods?

We accept TT 30% as a deposit, with the balance due before shipment via TT or L/C at sight.

What does the FOB reference price include?

The FOB price includes the product cost. If you do not have a freight forwarder, we can provide CIF prices including shipping costs to your nearest port.
