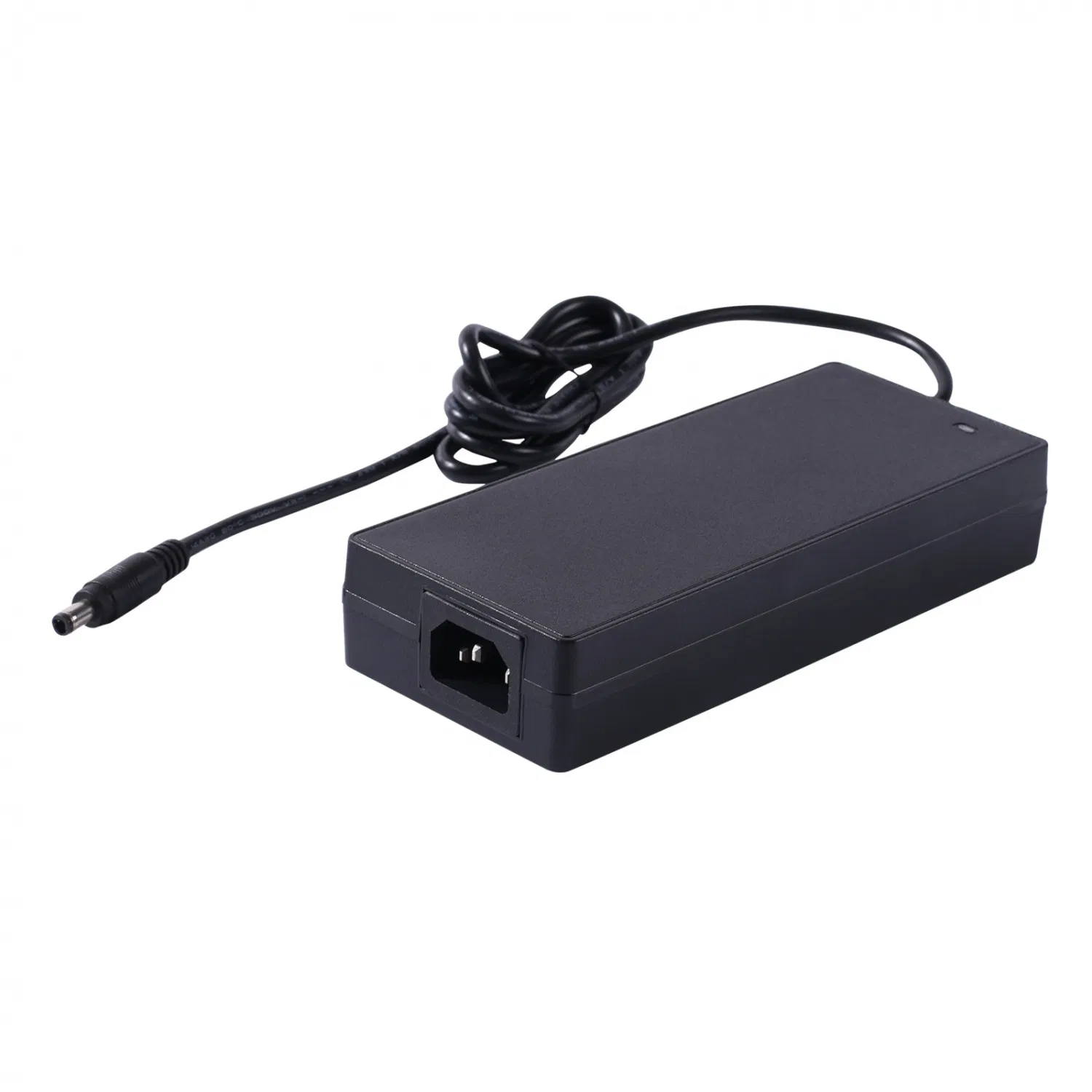

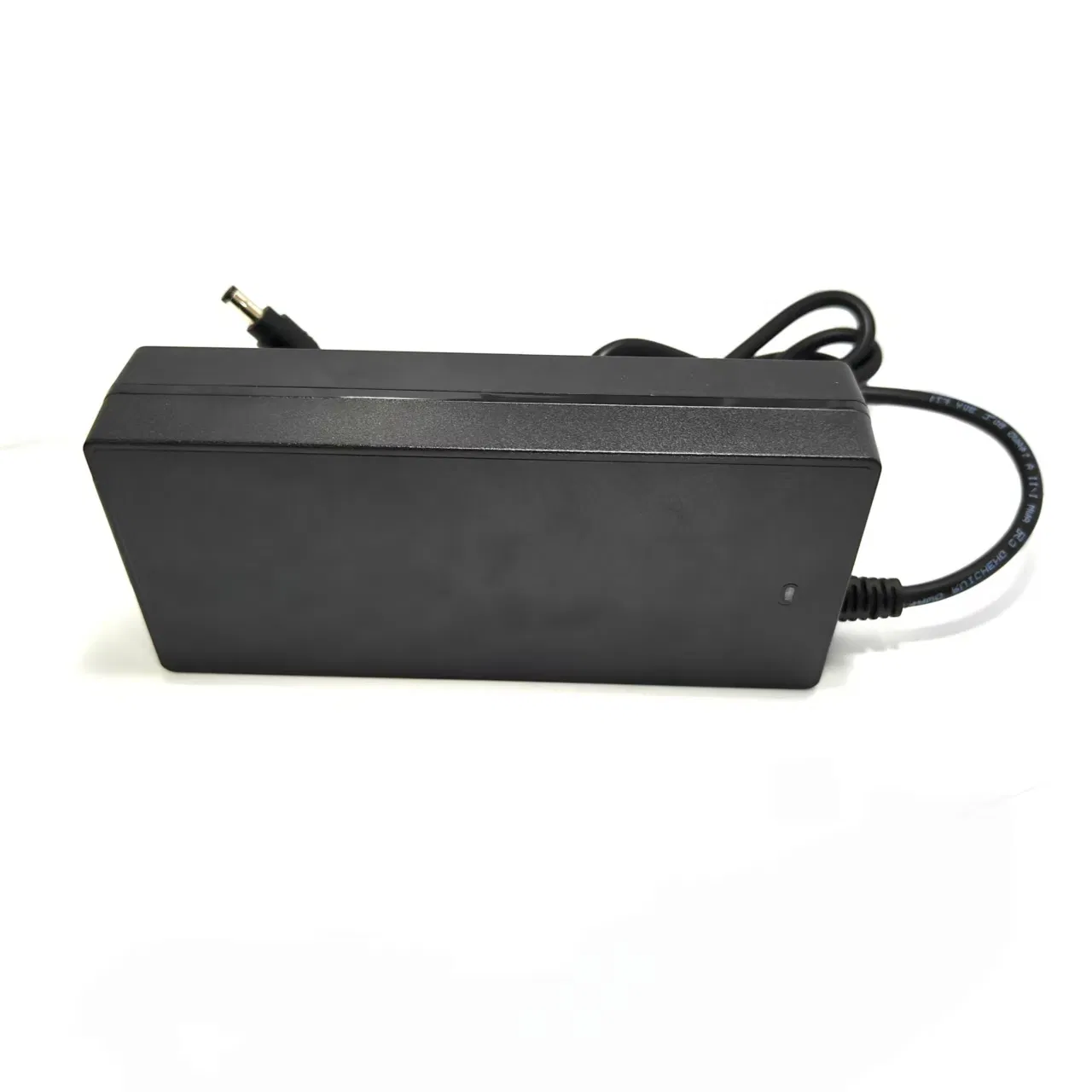

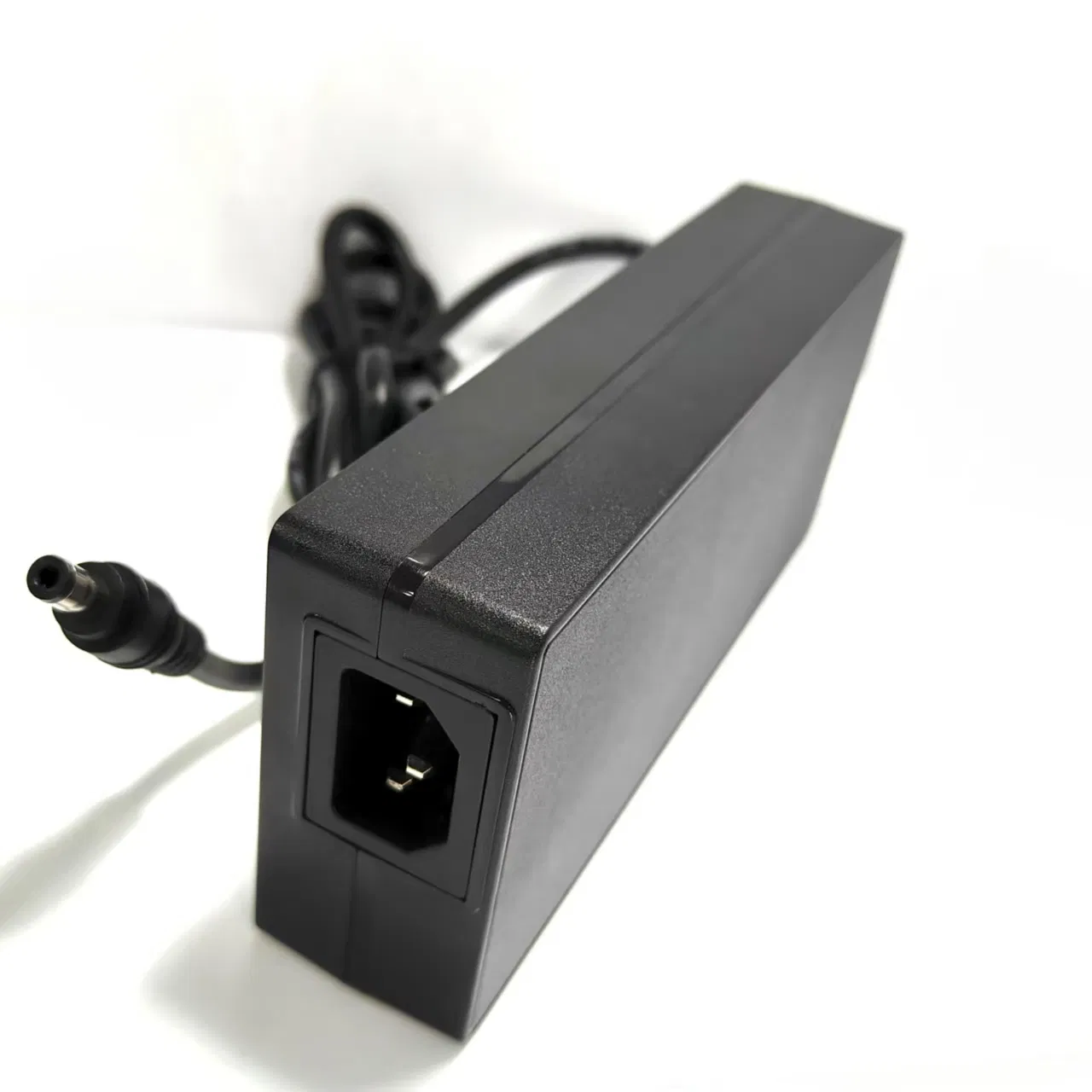

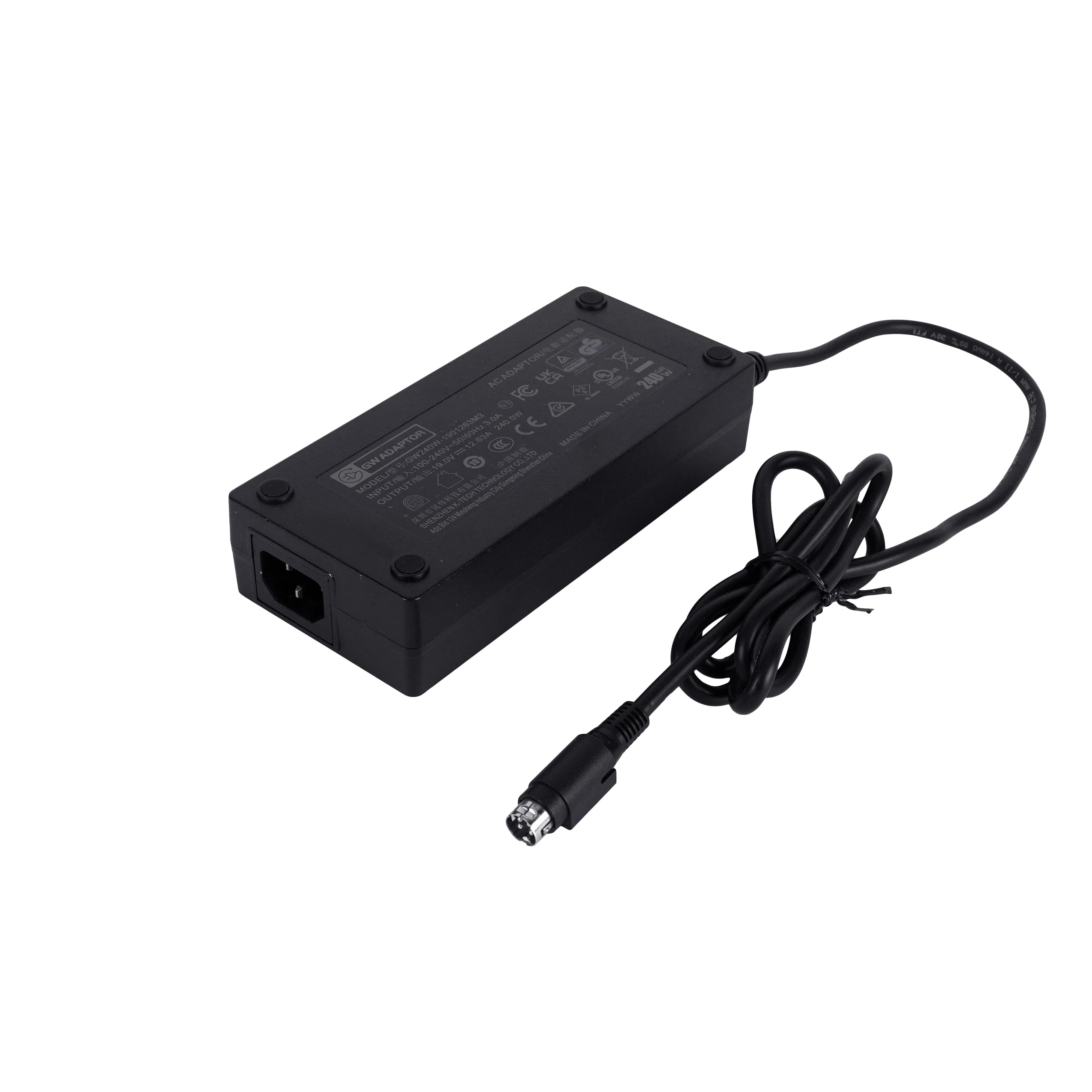

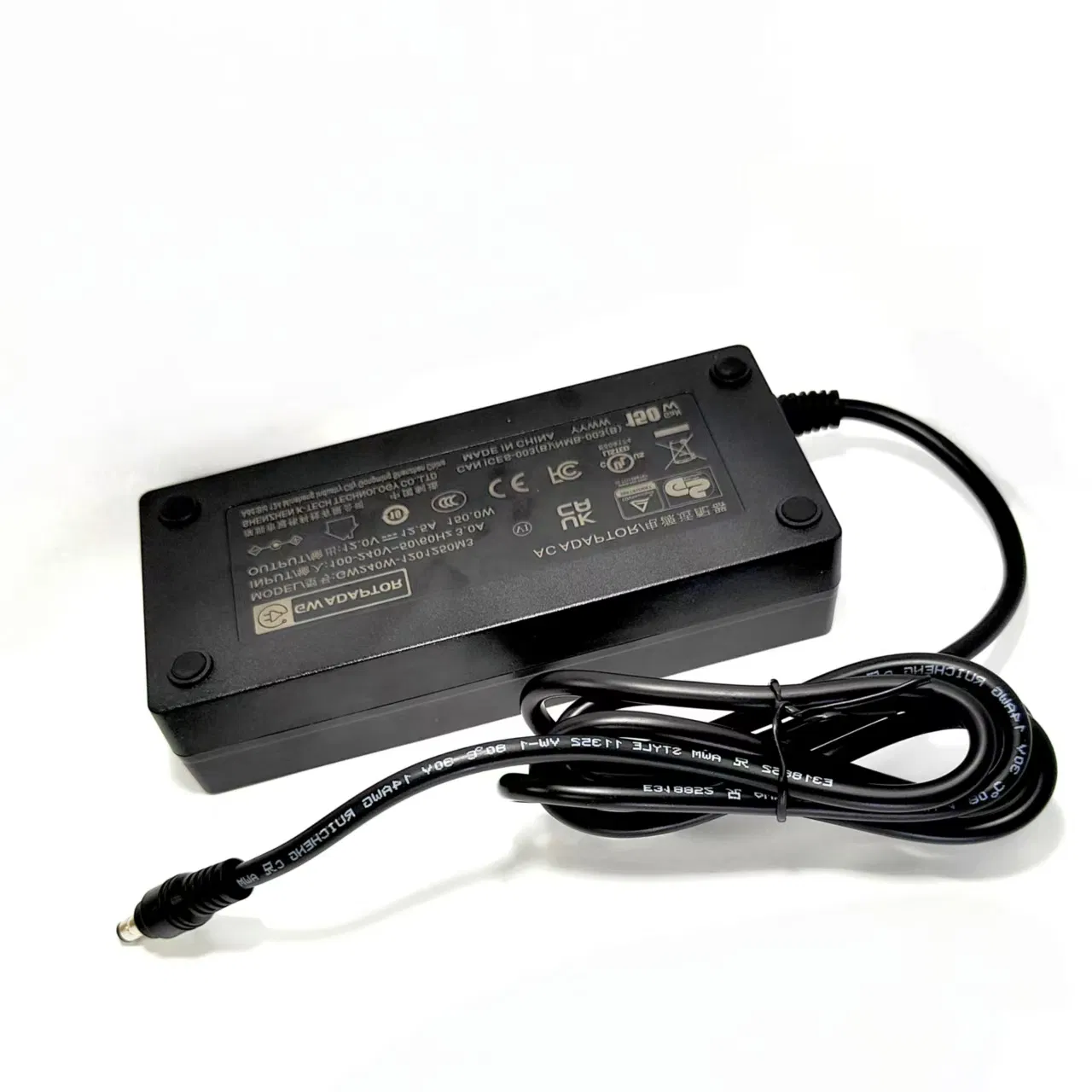

Standard 240W at 19V 12A Power Charger for Gaming Laptops & Audio
The AC to DC 62368 60601 standard complied "240W at 19V 12A battery charger replacement" is designed for gaming laptops and high-end audio equipment. This demonstration uses a 19Vdc 12A output, but the range is customizable from 12V to 50V (0.01Amp to 16Amp).
Applications:
Input Characteristics
| Parameter | Value |
|---|---|
| Rated Input Voltage | 100-240Vac |
| Operating Range | 90-264Vac |
| Rated Input Frequency | 50/60Hz |
| Rated Input Current | 3.0 A Max. |
| Power Consumption (No Loading) | 0.21W Max. |
| Configuration | Class I Conductor |
Output Requirements
| Parameter | Detail |
|---|---|
| DC Output Voltage | 19.0V |
| Rating Load Current | 12.0A |
| Rating Output Power | 240.0W |
| Ripple and Noise | 150mVp-p Max. |
| Average Efficiency | 88.00% Min (Level VI) |
| Hold Up Time | 10 mS Min. at 115Vac |

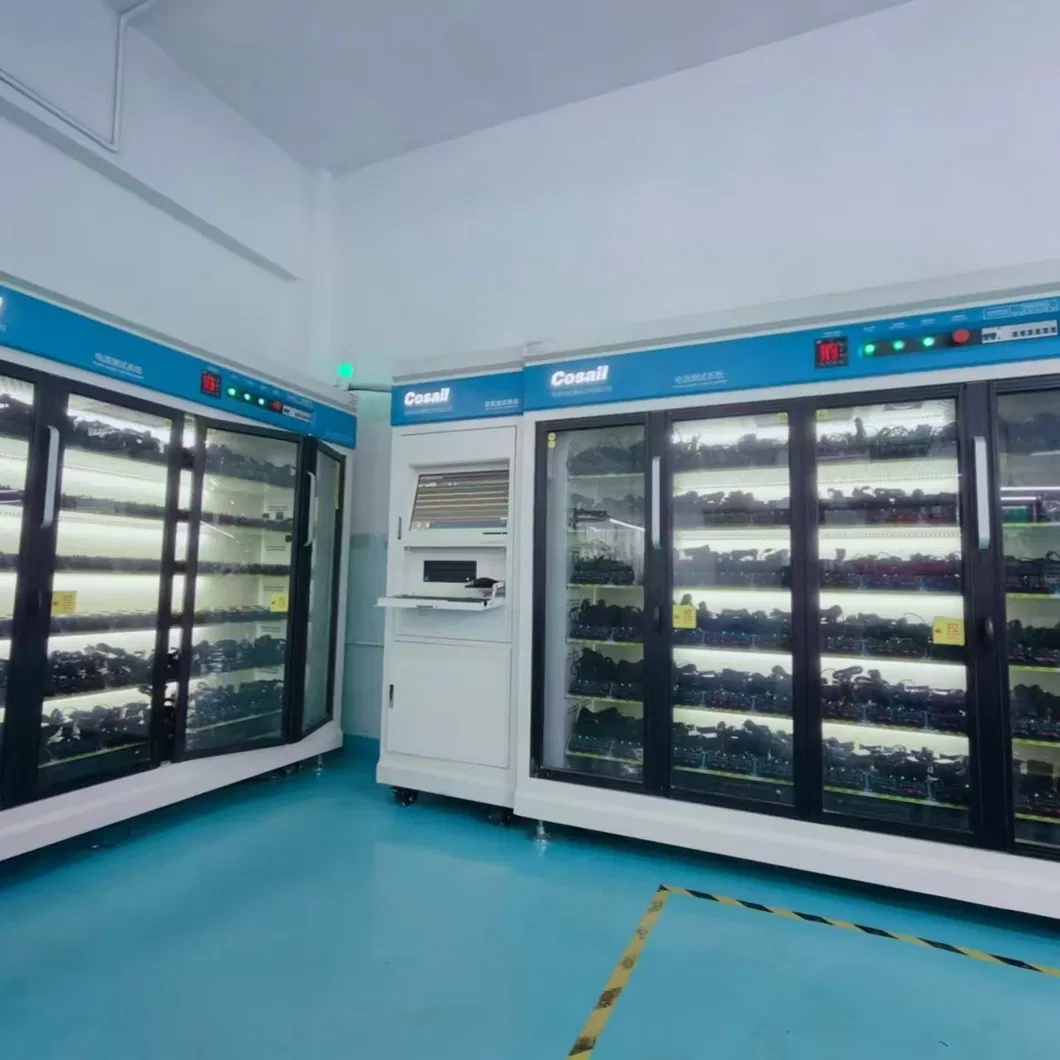

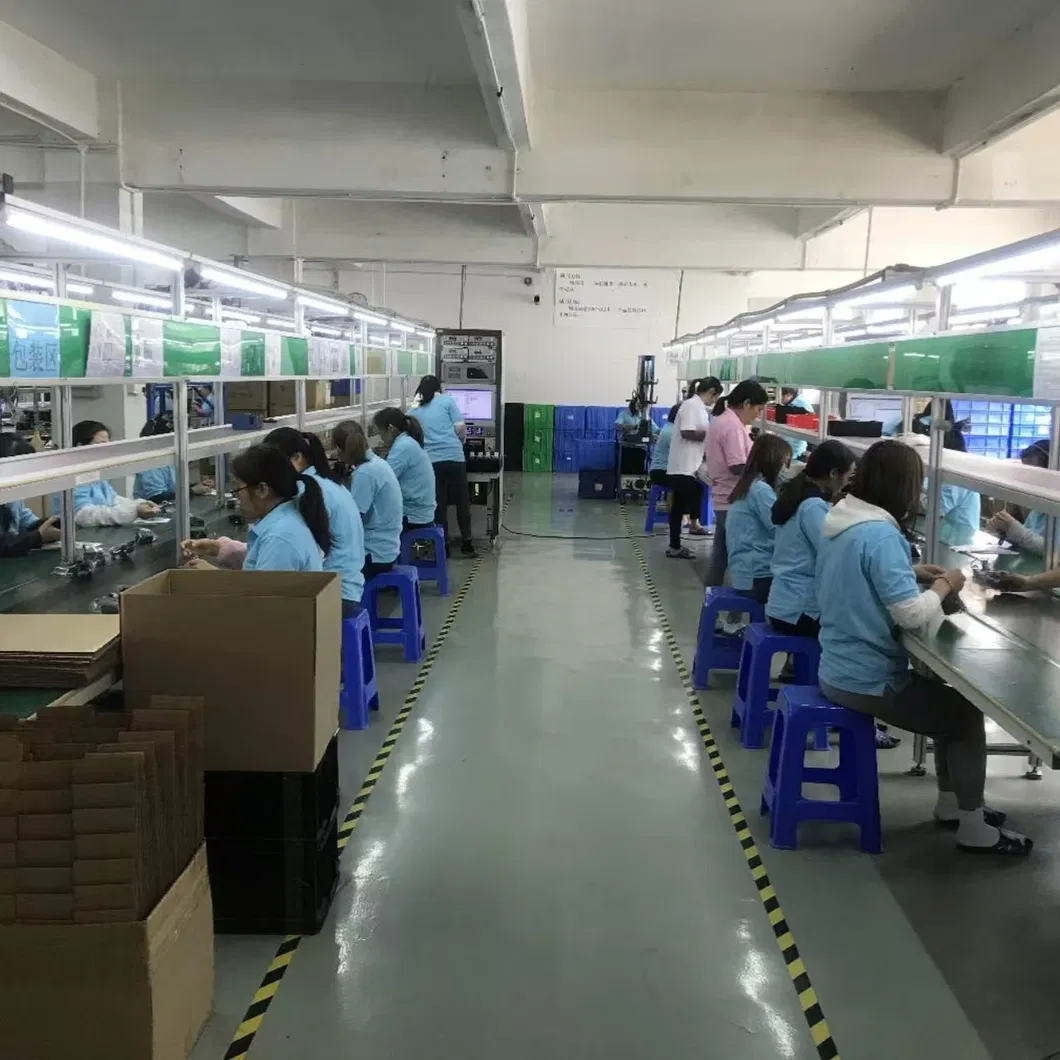

We strictly adhere to ISO9001 standards to establish and manage our production lines. Every power supply undergoes 100% product aging to ensure zero defects.
Packing Information:
| Carton Size | 490x455x188mm |
| Quantity | 20pcs per carton |
| Gross Weight | ≈14.2kg |
Our high wattage power adapters have won warm praise internationally, including nominations as "The best robot charger".
