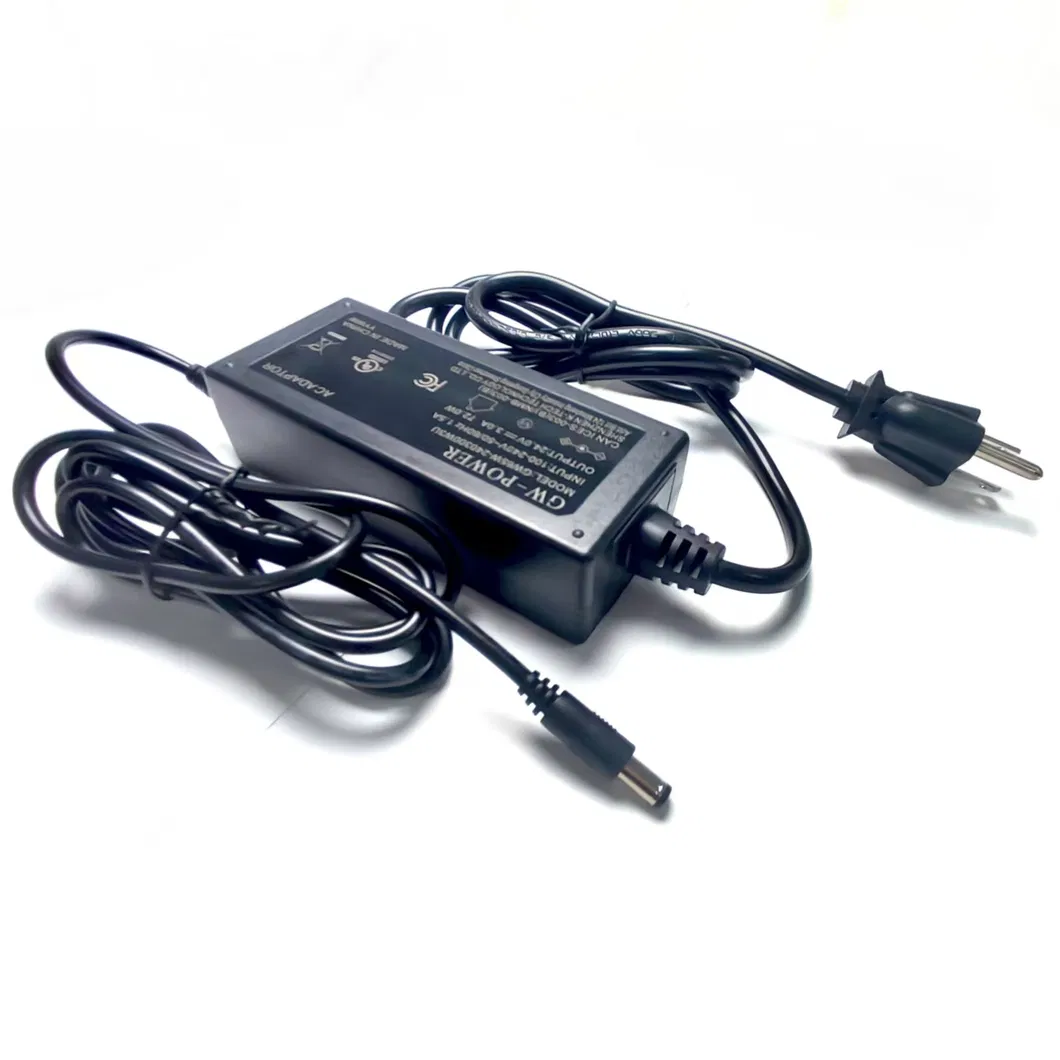

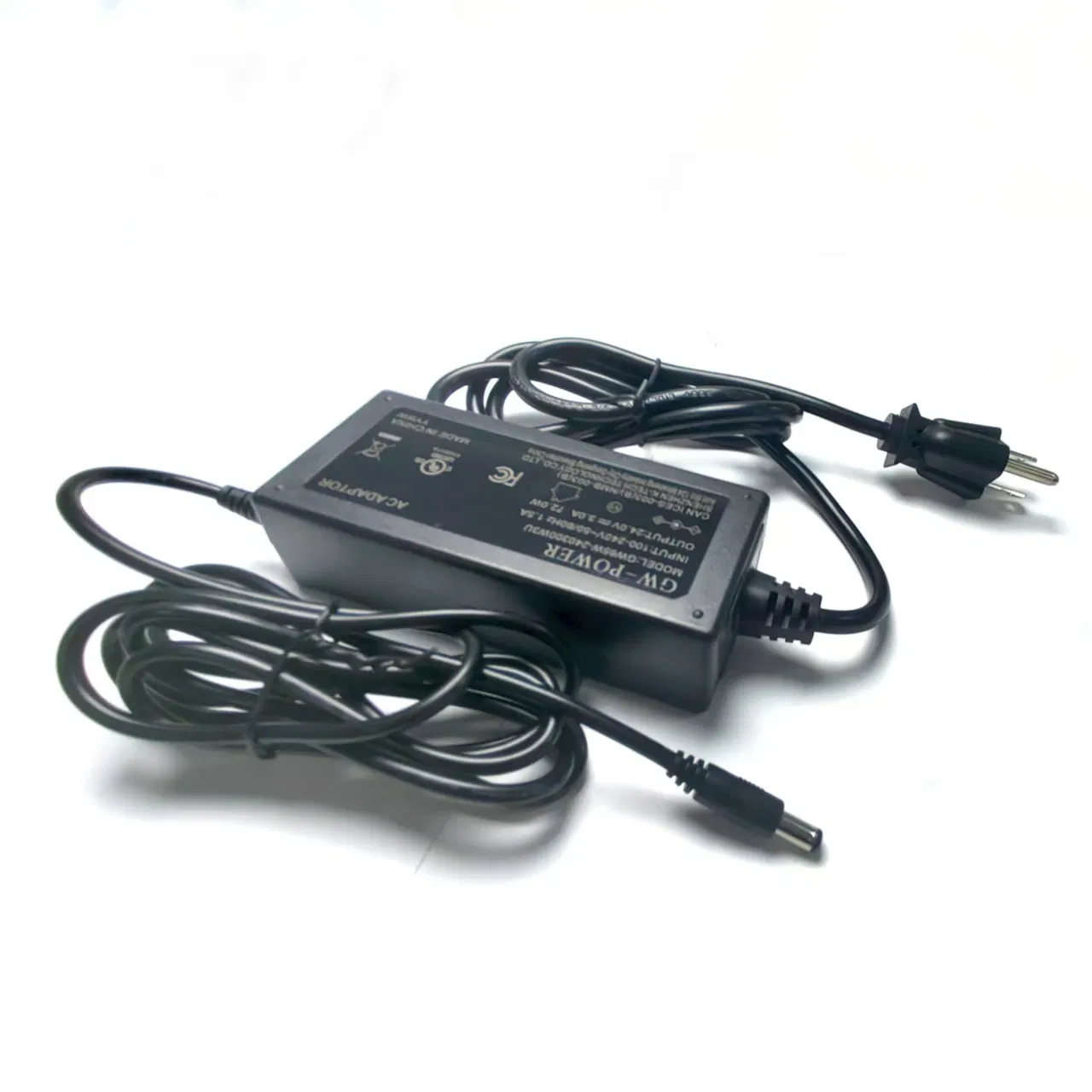

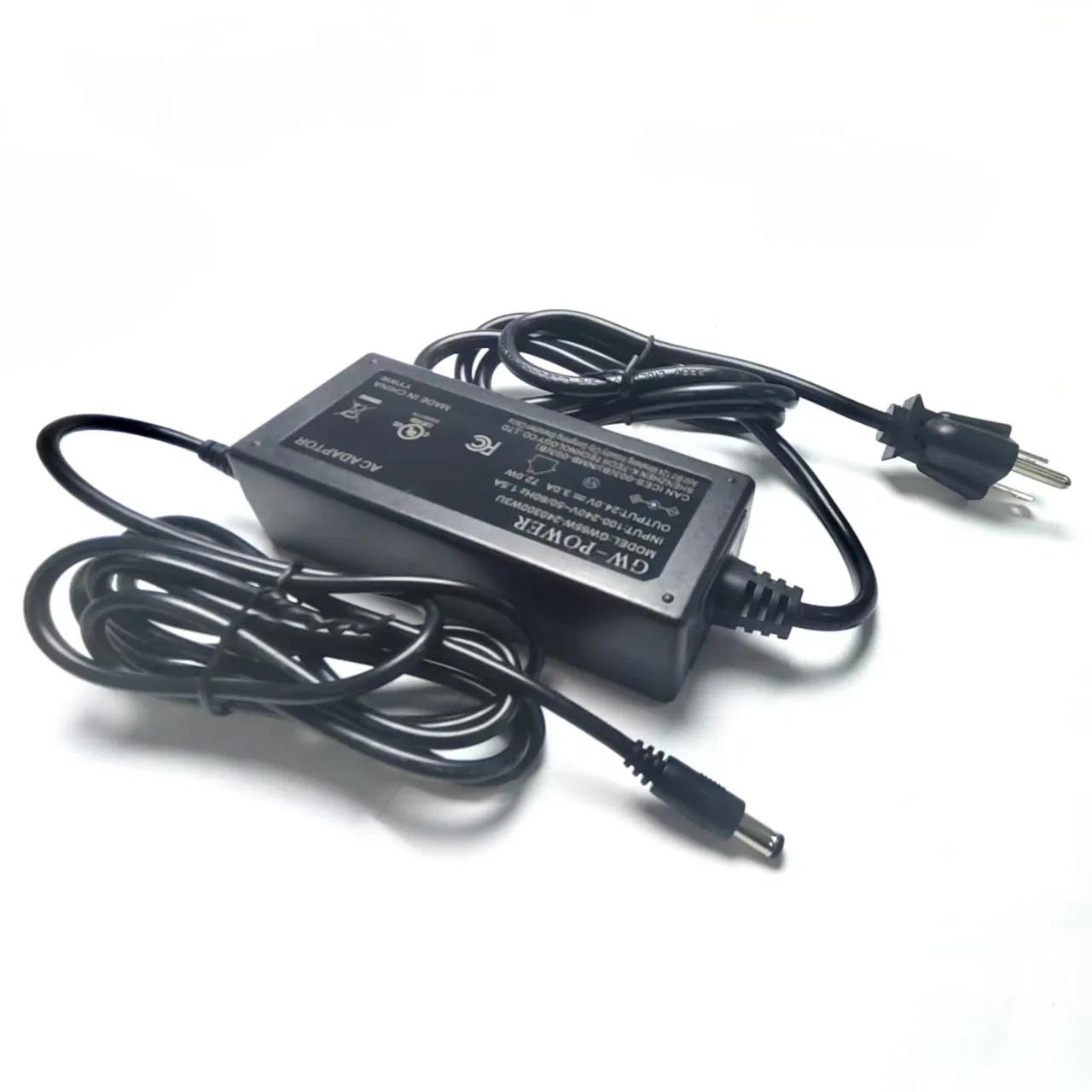

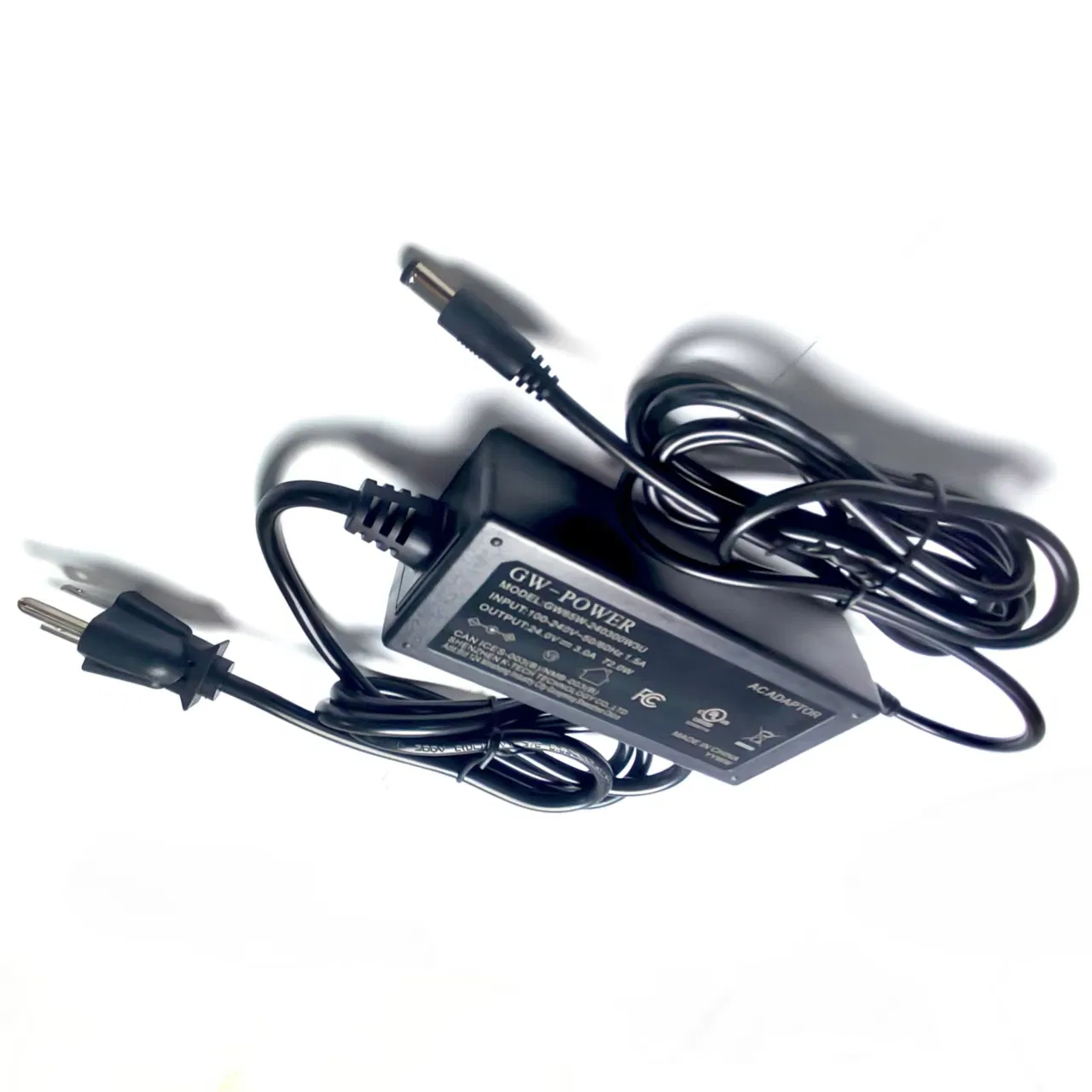

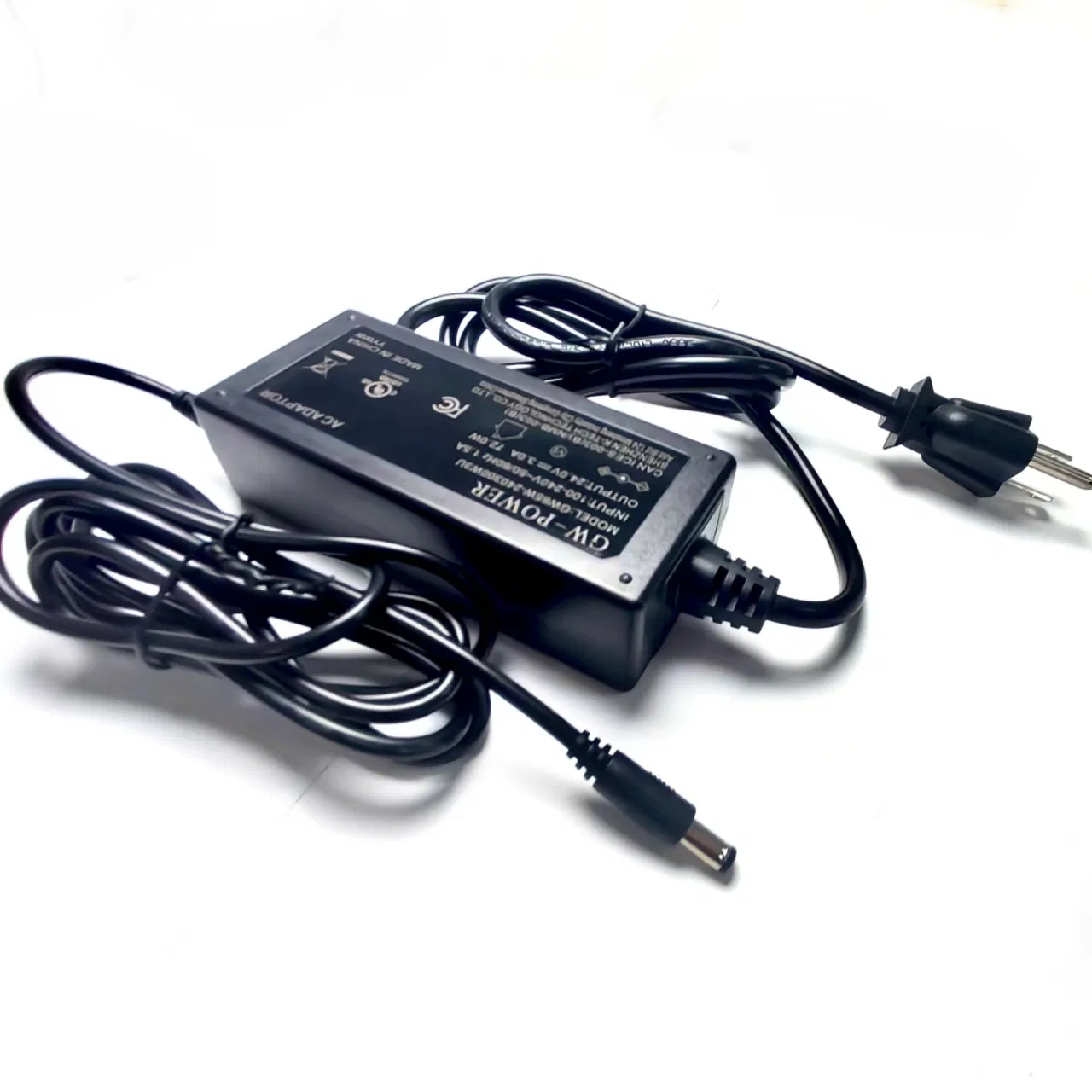

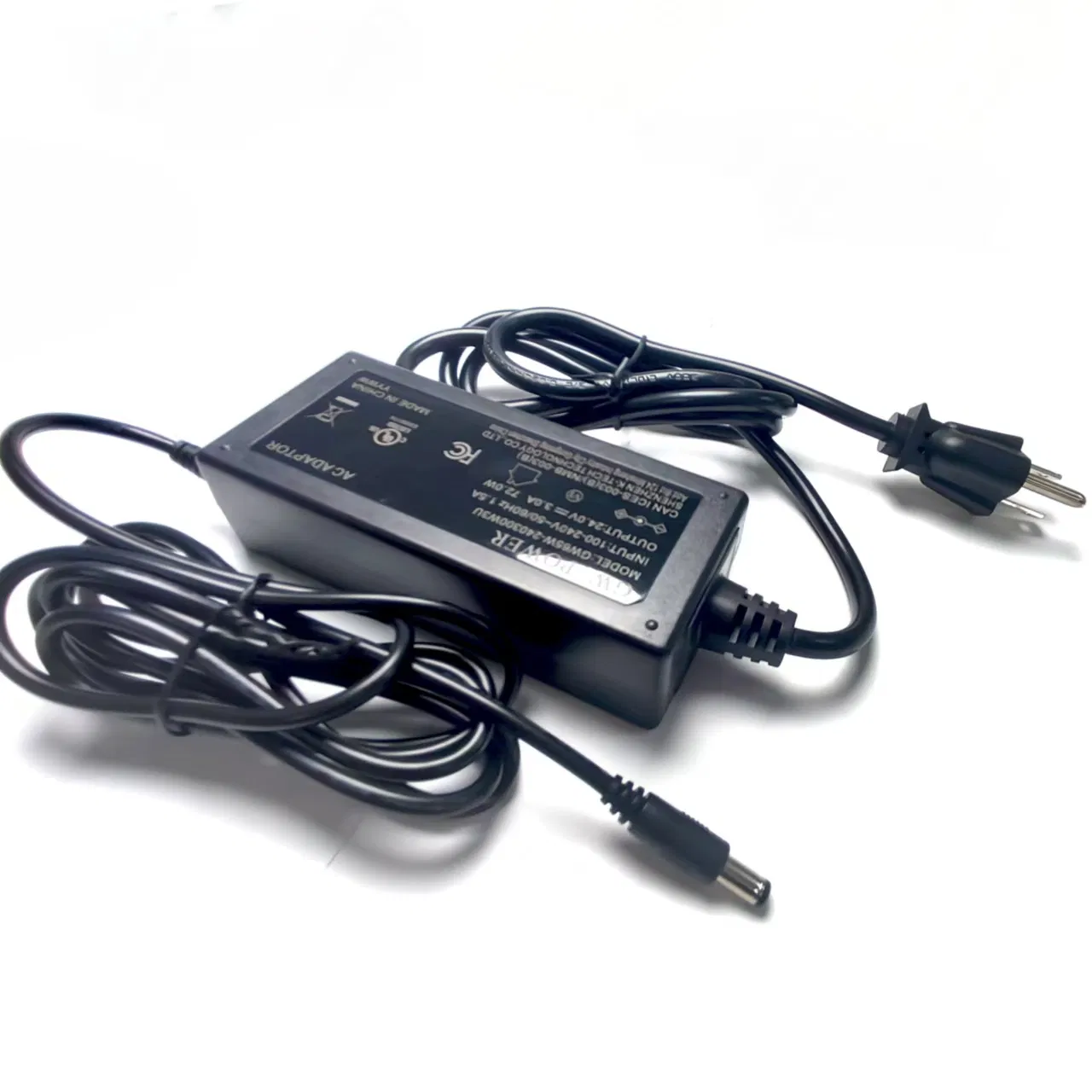

This is a standard external switch mode power supply adapter charger designed for diverse indoor applications. The IEC62368 standard-compliant "19V 2.63A DC charger 50W power adapter" is highly reliable and safe, certified by multiple international bodies. It is suitable for IT, ITE, ICT, and daily devices such as laptops. With supreme durability and an MTTF of more than 50,000 hours, it effectively reduces long-term power costs. Input options include C8, C6, or C14 inlets, or an unremovable AC power cord version. Output can be defined from 9V to 25V, with currents ranging from 0.01A to 6.0A.
As a universal replacement meeting standard 62368, it fits applications including but not limited to:
Note: It energizes all electric devices running on 19V 2.63A DC power. Custom specifications are available upon request.
| Input Characteristics | |
|---|---|
| Rated Input Voltage | 100-240Vac |
| Operating Range | 90-264Vac |
| Rated Frequency | 50/60Hz |
| Rated Input Current | 1.5 A Max. |
| No Loading Consumption | 0.21W Max. |
| Output Requirements | |
|---|---|
| DC Output Voltage | 19.0V |
| Rating Load Current | 2.63A |
| Rating Output Power | 50.0W |
| Ripple and Noise | 150mVp-p Max. |
| Average Efficiency | 88.00% Min (Level VI) |
| Turn on Delay Time | 3 Seconds Max. |
| Region | Standard | Certified Status |
|---|---|---|
| USA | UL 62368-1 / FCC PART15 | MEET |
| Europe | EN 62368-1 / CE | MEET |
| Canada | CAN/CSA C22 2 NO.62368-1-14 | MEET |
| Britain | BS EN62368-1 / UKCA | MEET |
| Japan | J62368-1 / PSE | MEET |
| Australia | AS/NZ 62368.1 / SAA | MEET |
| Output Voltage (VDC) | Output Current (Amp) | Max Output Power |
|---|---|---|
| 9.0 - 11.9 | 0.01 - 6.0 | 54W |
| 12.0 - 17.0 | 0.01 - 5.0 | 65W |
| 17.1 - 25.0 | 0.01 - 4.2 | 72W |
Configurable Elements: DC Cable type/length, AC plug types, DC connector specs, and nameplate information.

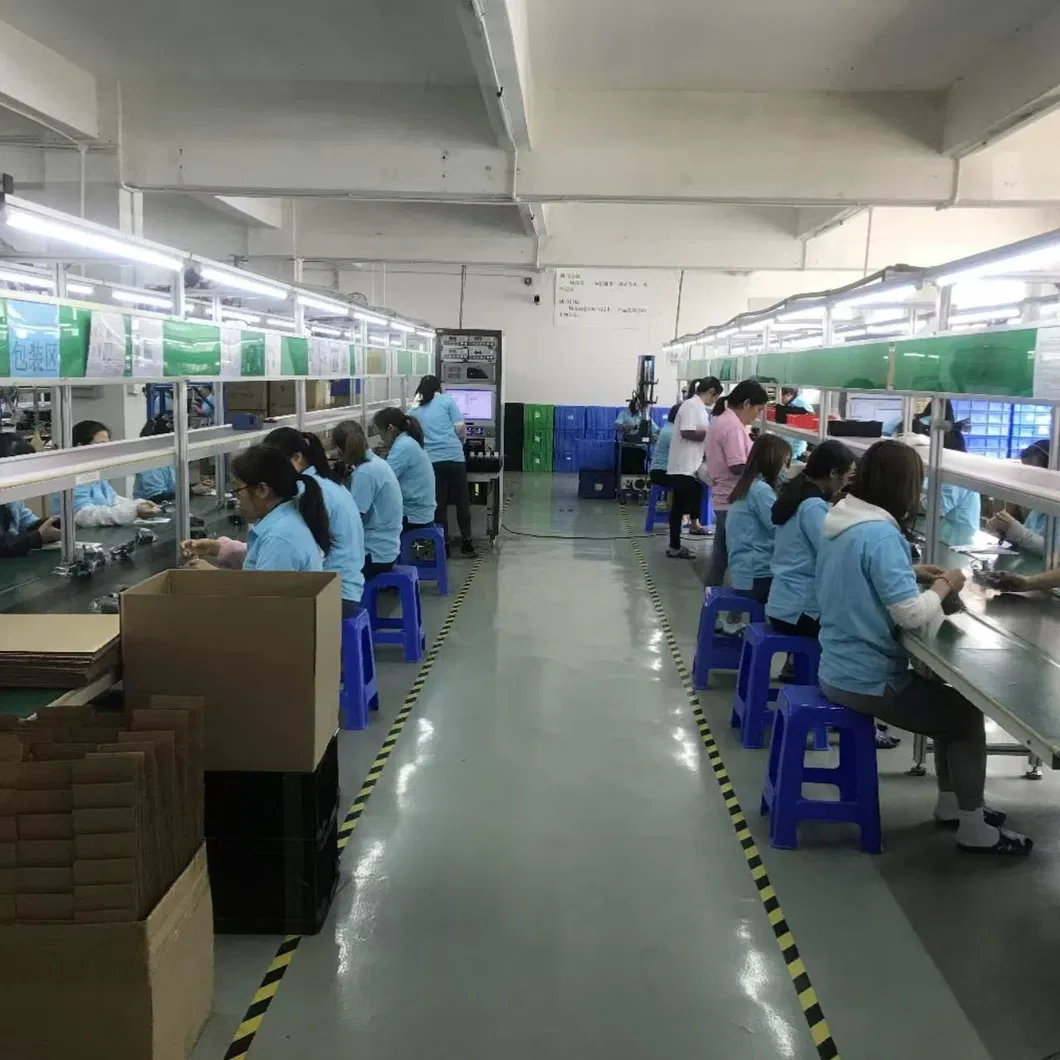

Devoted to external power supply manufacturing under ISO9001 criteria for over 15 years, producing standardized products from 1W to 360W. Every unit is crafted to ensure peak quality and safety compliance. We offer medical-grade power solutions (IEC60601) and tailored designs to enhance customer competitiveness.
